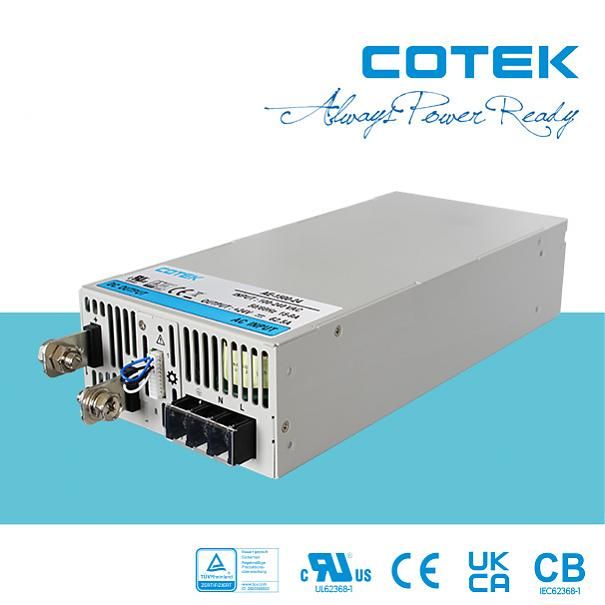

model AD-1500-12,AD-1500-15,AD-1500-24,AD-1500-36,AD-1500-48,AD-1500-60
Main Features ◎ Variety of protocols supported: PMBus, MODBUS, RS232/485, and I2C ◎ Smart GUI to set and monitoring the power supplies remotely
Rated Power 1500W
DC Output Voltage 12V; 15V; 24V; 30V; 36V; 48V; 57V
DC Output Quantity Single
Rated Current 125A; 100A; 62.5A; 50A; 41.7A; 31.3A; 26.3A
Ripple & Noise (Max.) 150mVp-p (12V)
Input Voltage Range 90 ~ 264VAC, 250~370VDC
Inrush Current (Typ.) 30A / 115VAC, 45A / 230VAC (cold start)
Function Auxiliary power; Remote ON/OFF control; Power OK signal; Output voltage and current trim (C11 only)
Parallel Connection Yes (coming soon)
Protection Over Load / Over Voltage / Over Temperature / Short Circuit / Fan Failure
Cooling Load and temperature control fan
Efficiency 93%
Operating Temperature -20~60℃
Storage Temp. & Humidity -40~85℃, 10~95%RH
Safety TUV / UL / CE / UKCA / CB
Dimension (WxHxD) 127.8x64x280.4 mm / 5.03×2.52×11.04 inch
Weight (Net) 2.2kg
AD-1500-LV
Universal AC input (90-264Vac)
Programmable output voltage & current 0~105%
Optional Changeable interface cards: A23, A24, C11 and Ethernet (coming soon!)
Built-in ORingFET and communication isolation circuit
Support Parallel operation via CANBUS (coming soon!)
Built-in communication isolation circuit (A23, A24 Version)
Constant current limit
Auxiliary output support 5V/1A
PMBus, MODBUS, RS232/485, and I2C protocol supported
Protection: OVP, OLP, OTP, UTP, AC Failure, Power and Fan Failures
Intelligent GUI to set and monitoring parameter (coming Soon!)
Accessory: AD COMMS Interface Kits (Optional)
