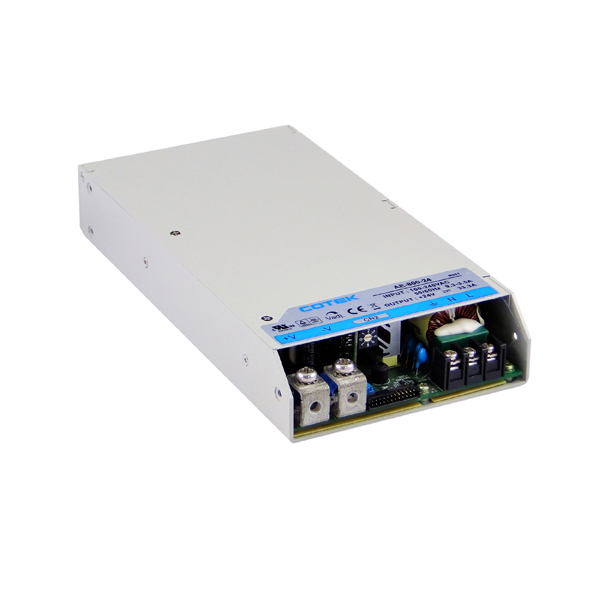

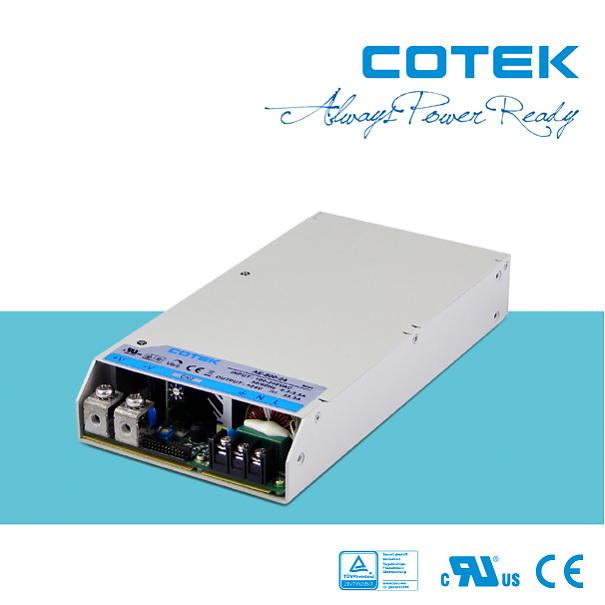

model AE-800-12, AE-800-15, AE-800-24, AE-800-30, AE-800-36, AE-800-48, AE-800-60
Main Features ◎ Programmable output voltage and output current (0%~105%) ◎ Constant current limit suitable for battery charging application ◎ Parallel connection with current sharing ◎ Serial connection
Rated Power 800W
DC Output Voltage 12V; 15V; 24V; 30V; 36V; 48V; 60V
DC Output Quantity Single
Rated Current 66.7A; 53.4A; 33.5A; 26.7A; 22.3A; 16.7A; 13.4A
Ripple & Noise (Max.) 120mVp-p; 150mVp-p; 240mVp-p; 300mVp-p; 360mVp-p; 480mVp-p; 600mVp-p
Input Voltage Range 90~264VAC, 127~370VDC
Inrush Current (Typ.) 30A / 115VAC, 60A / 230VAC
Function Auxiliary power; Remote ON/OFF control; Power OK signal; Output voltage trim; Output current trim; Address setting
Parallel Connection Yes
Protection Over Load / Over Voltage / Over Temperature / Fan Failure

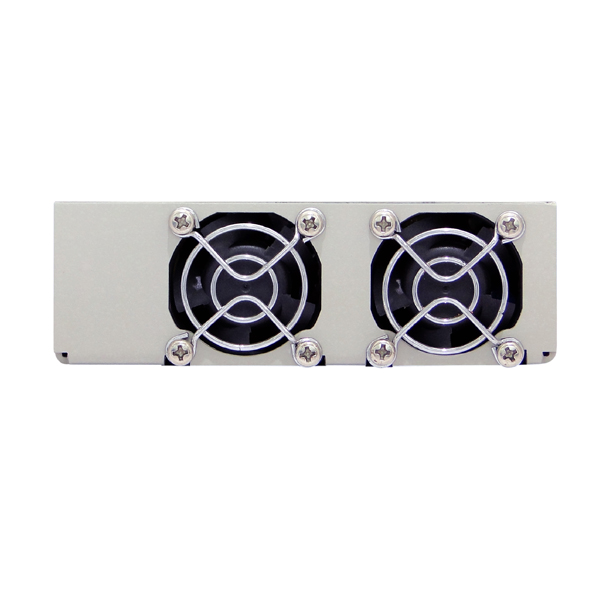

Cooling Load and temperature control fan
Efficiency 89%; 90%; 92%; 92%; 92%; 92%; 93%
Operating Temperature -20~60℃
Storage Temp. & Humidity -40~85℃, 10~95%RH
Safety TUV / UL / CE
Dimension (WxHxD) 127x41x249 mm
Weight (Net) 1.7kg
AE-800
Universal AC input / Full range
Programmable output voltage (0%~105%)
Programmable output current (0%~105%)
Forced current sharing at parallel operation
Constant current limit
Selectable +5V / 0.5A or +9V / 0.3A auxiliary output
Remote setting multiple PSU via RS-232, RS-485 & I2C
Power OK signal
Remote ON / OFF, Remote sense function
Protection: OVP, OLP, OTP, Fan failure
Accessory:
CT Series
