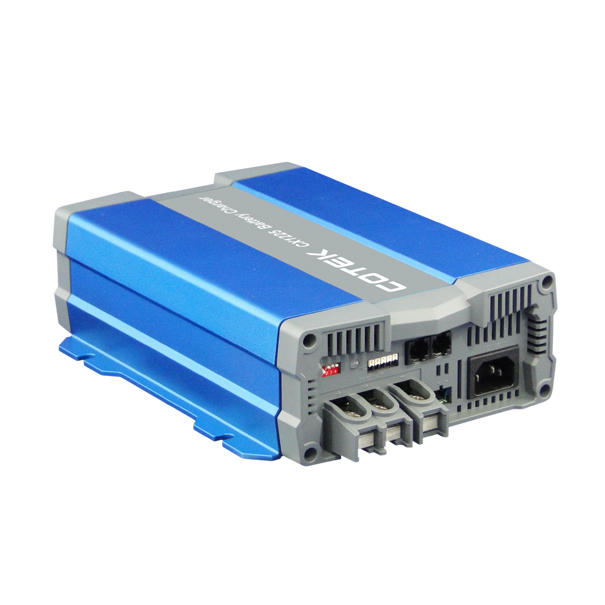

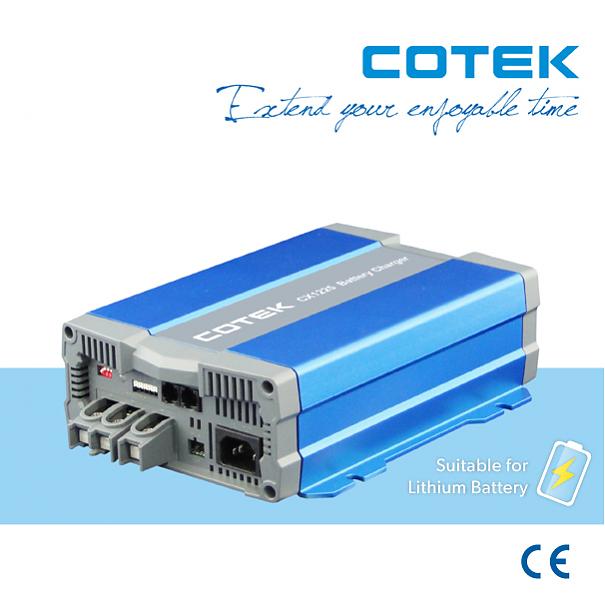

model CX1225
Main Features ◎ Built-in Engine Start Battery (ESB) output ◎ 3-stage charging mode ◎ Green design (sleep mode): charging with low low audible noise
Battery Type Lead Acid / Li-ion / Gel / AGM
Output Voltage 12V
Standard Boost Charge Voltage 14.4V / 14.7V (select by switch)
Standard Float Charge Voltage 13.8V / 13.5V (select by switch)
Main Rated Current 25A
Main Output (Quantity) 2
Input Voltage Range 90~264VAC
Efficiency 87%
Operating Temperature -20~50℃
Storage Temperature -40~85℃
Safety CE
Dimension (WxHxD) 183x72x243 mm
Weight (Net) 1.7kg
CX1225
Universal AC input with active PFC
Suitable for lead acid, Li-ion, Gel and AGM batteries
3-stage charging mode
Dry contact for alarm
Support RS-485 / RS-232 communication protocol
Voltage temperature compensation
2 stage fan speed control (sleep mode)
High efficiency and high reliability
Built-in battery rescue function
Built-in Engine Start Battery (ESB) output function
Double output design support two batteries
Protection: Short Circuit / Over Voltage / Over Temperature / Brown-out
Withstand 2G vibration test
CE approved
Accessory:
Remote controller CR-1
