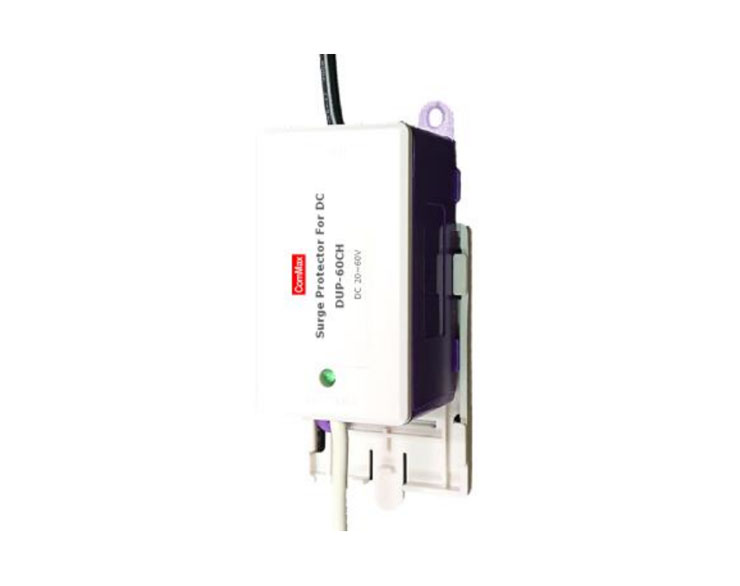

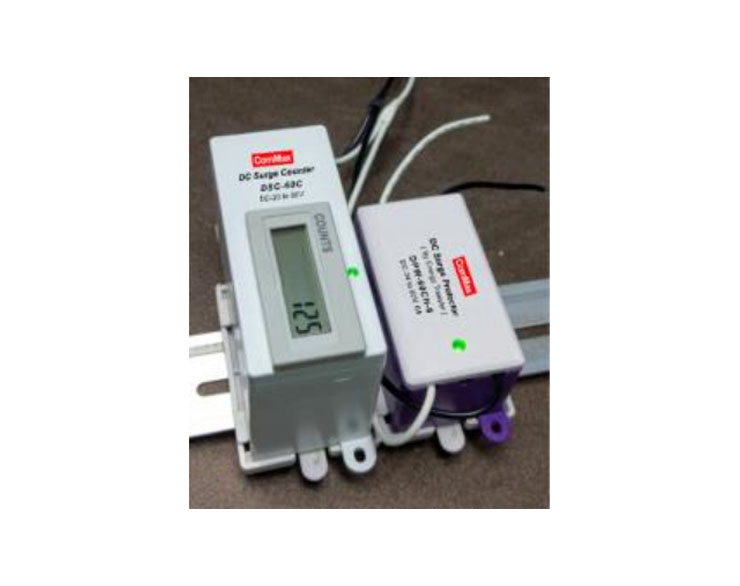

model DUP-60C
Voltage Range DC 20V~60 V
Suppressing Surges Series Sparks(SS); Lightning Flash Surge (LFS); power switching surges (PSS)
Switching Inrush Current (SIC) ; Electric Magnetic Pulse (EMP)
Protection Mode Line (+) to Line (-)
Residue Voltage <250Vp ±20%,(by combination wave, 6KV/3KA) Input Impedance without loads > 10 M Ohm
Max impulse current , 8×20μs 10KA @ 8×20μs wave, 1 times
Max Surge Immunity Test 1.2×50μs,10kV/8×20μs,5kA combination wave at least 5 time in 120sec interval
Ground Resistance Requirement no ground requirement
EMP/EFT Suppressed Rate 95% , 4.5kV in 5x50ns EFT(Elec. Fast Transient / bust) waveform
Connecting mode Two wires connected across “+” and “-“ of DC system with no ground.
Compliance standards ANSI C62.41, cat. C, high exposure, IEC 61000-4-5, IEC 61000-4-4,
IEC 61643-1 , ANSI C37.90.1、CNS 14676-4(C6424-4)、CNS14676-5(C6424-5)
Dimension & Weight 84(L) x 44(W) x 42(H) , mm / 250g
Enclosure & Material Industrial Plastic / Able to be fixed by screws or DIN rail
Operation temp. / Rel. Humidity -40°C ~ 37°C / 35% ~ 95% RH (no condensing)
