model SC-1200-112, SC-1200-124, SC-1200-212, SC-1200-224
Main Features ◎ All in one design: Bi-direction inverter and charger ◎ Certified by UL458 with marine supplement ◎ Compact design
AC Output Voltage 100/110/115/120VAC ± 3% ; 200/220/230/240VAC ± 3%
Rated Power 1200 W
Surge Power Load 101%~115% (1 Min) ; 2400 VA (2 Sec)
Output Waveform Pure Sine Wave (THD < 5% @ 12.5V/25V/115VAC, linear load) / (THD < 3% @ 12.5V/25V/230VAC, linear load) Frequency 50/60 Hz ± 0.3 Hz (User-selectable) DC Input Voltage 12V; 24V DC Input Voltage Range 10.5 ~ 16.5 VDC; 21 ~ 33 VDC Efficiency >88%
Operating Temperature -20℃ ~ 50℃, Power De-rating from 50°C to 60°C
Storage Temperature -30 ℃~70 ℃
Safety UL458 & Supplement SA , FCC class A
Dimension (WxHxD) 251 x 116 x 386mm
Weight (Net) 4.55Kg

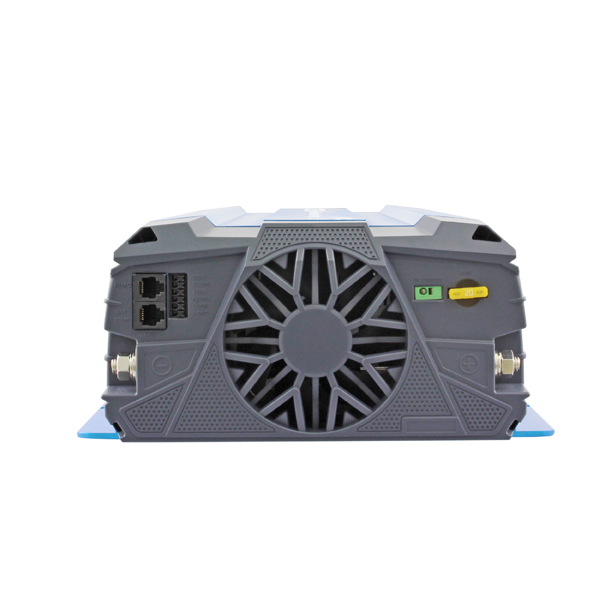

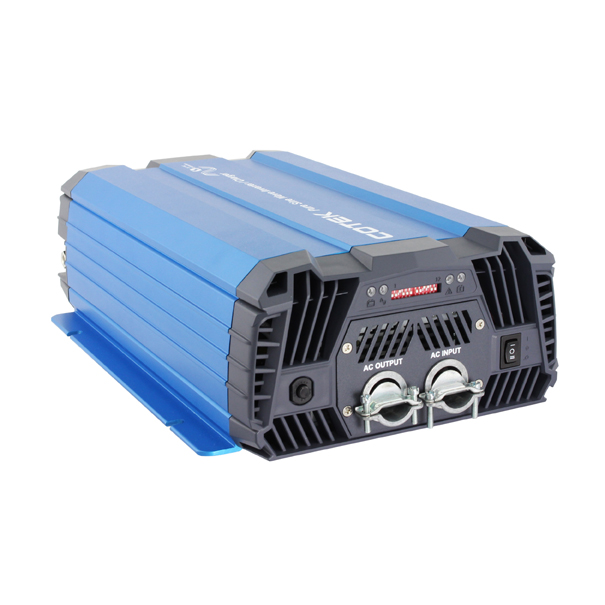

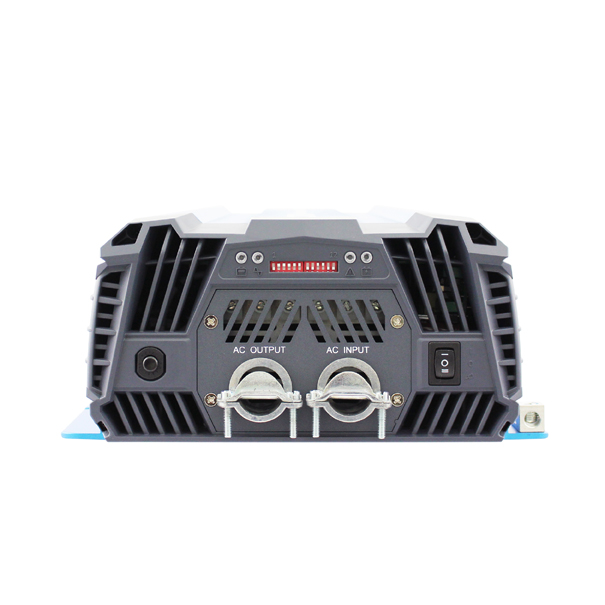

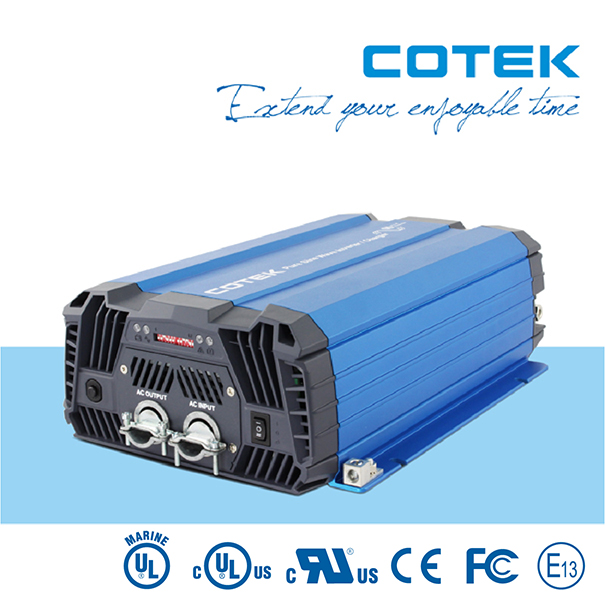

SC-1200 (1200W)
Bi-directional inverter and charger
Automatically various operation mode : 1. Inverter mode 2. Charger mode 3. Power Sharing 4. Power Generation 5. Power Support
3 stage charging function
Wide working temperature range ─-20°C ~ 40°C
UL & CE Certified. Such as UL458 with marine supplement , UL1741, FCC approved
-20°C~40°C full load operation without derating
High Power density (1200W @4.55kg, 2000W @ 6 kg)
Remote controller CR-20C / CR-8 (Optional)
TS-01 Charging Compensation via The Temperature Sensor (optional)
