model SR-1600-124 PLUS, SR-1600-148 PLUS, SR-1600-224 PLUS, SR-1600-248PLUS
Main Features ◎ Module design hot-swappable, redundancy rack mount inverter ◎ Parallelable module up to 32 pcs ◎ Selectable DC Mode / AC Mode
AC Output Voltage 100~120VAC; 200~240VAC
Rated Power 1200W/1600VA; 1600W/1600VA; 1200W/1600VA; 1600W/1600VA
Surge Power Refer to datasheet
Output Waveform Pure Sine Wave
Frequency 50/60 Hz
DC Output Voltage ─
DC Output Voltage Range ─
DC Input Voltage 24V; 48V; 24V; 48V
DC Input Voltage Range 18~34VDC ± 3%; 36~68VDC ± 3%; 18~34VDC ± 3%; 36~68VDC ± 3%
Efficiency AC Mode: 96%; 97% DC Mode: 89%; 90%; 90%; 91%
Operating Temperature -25~40℃(DC Mode); -40~40℃(AC Mode)
Storage Temperature -40~70℃
Safety CE / FCC
Dimension (WxHxD) Module: 105x83x410 mm; Shelf: 446x85x509 mm
Weight (Net) Module: 3.8kg; Shelf: 6.5kg
Socket Type Terninal
SR-1600 PLUS

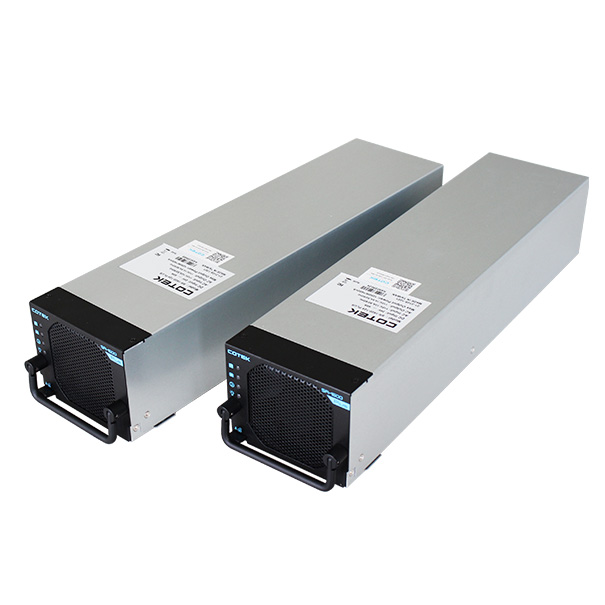

Hot swappable module with LED indicator

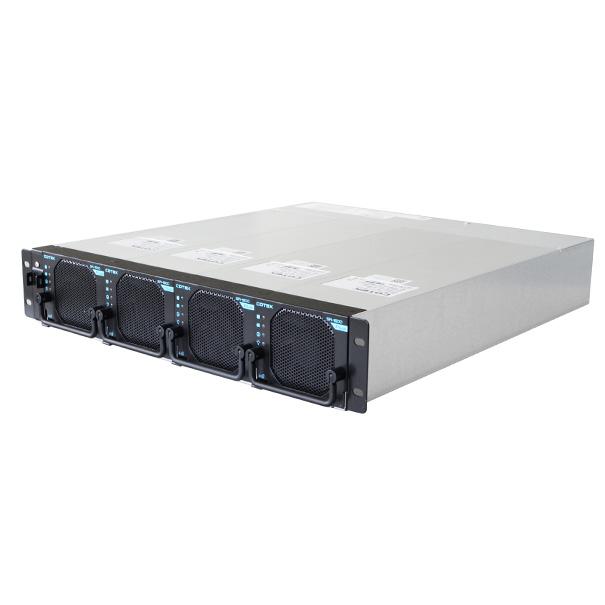

Standard 19” 2U rack mount
Zero transfer time
DC Mode / AC Mode selectable
High efficiency up to 97% at AC Mode
Dual input source (AC & DC)
Up to 32 modules can be connected in parallel (up to 51.2KW)
Replacable fan module to make maintenance easy
Input protection: Reverse Polarity / Under Voltage / Over Voltage
Output protection: Short Circuit / Over Temperature
Wide AC input range 75~132VAC (110VAC) / 150~265VAC (220VAC)
CE / FCC approved
Accessory:

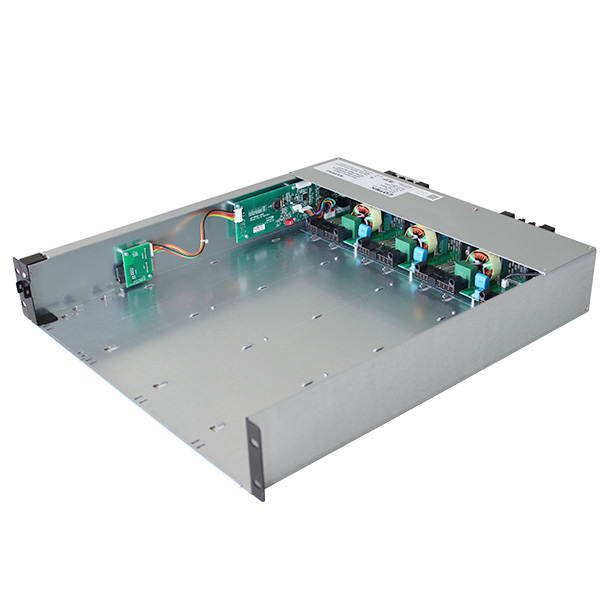

Scalable rack
Front-end changeable fan module
By-pass switch
iC-HUB
