model SR1000T-124, SR1000T-148, SR1000T-224, SR1000T-248
Main Features ◎ 19” 1U rack mount ◎ User-friendly LCM module ◎ Selectable on-line / off-line modes
AC Output Voltage 97~123VAC (user-selectable); 194~246VAC (user-selectable)
Rated Power 1000W
Surge Power 2000W
Output Waveform Pure Sine Wave (THD<2%)
Frequency 47~63 Hz ± 0.5% (user-selectable)
DC Output Voltage ─
DC Output Voltage Range ─
DC Input Voltage 24V; 48V
DC Input Voltage Range 18~34VDC; 36~68VDC(UL: 36~60VDC)
Efficiency 87%; 88%; 90%; 91%
Operating Temperature 0~50℃
Storage Temperature -30~70℃
Safety CE / FCC / UL
Dimension (WxHxD) 483x44x345 mm
Weight (Net) 7.46 KG
Socket Type NEMA 5-15R / IEC

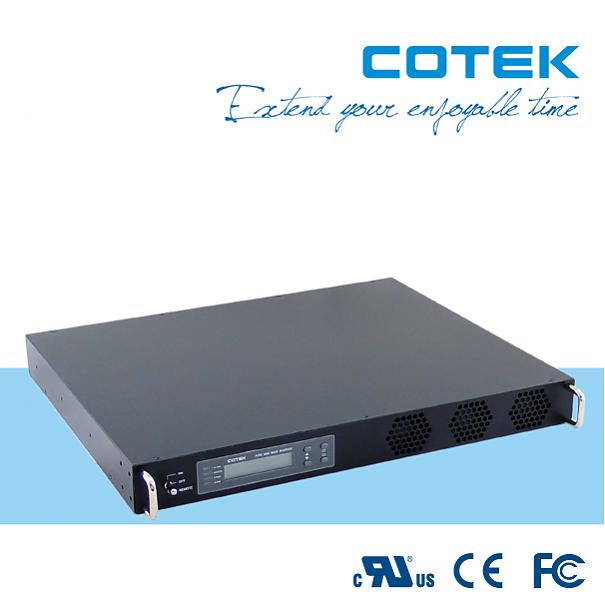

SR1000T (1000W)
Pure sine wave output (THD < 2%)

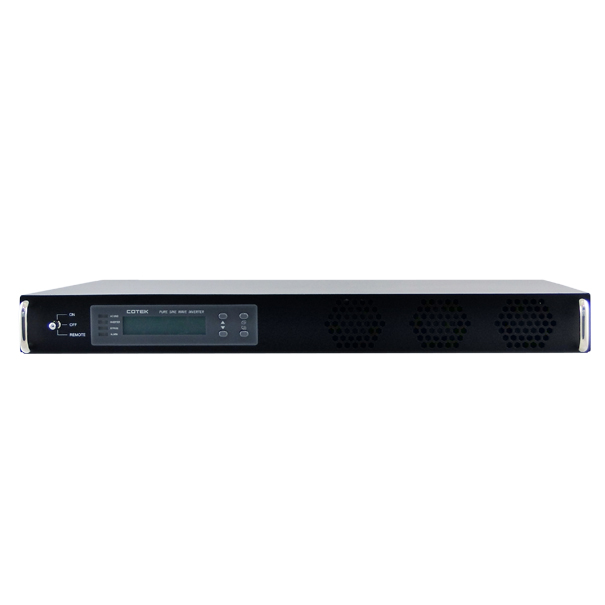

Standard 19” 1U rack mount
User-friendly LCM module
Dry contact for system alarm
RS-232 communication port
Selectable on-line / off-line modes
Built in AC transfer switch and AC breaker

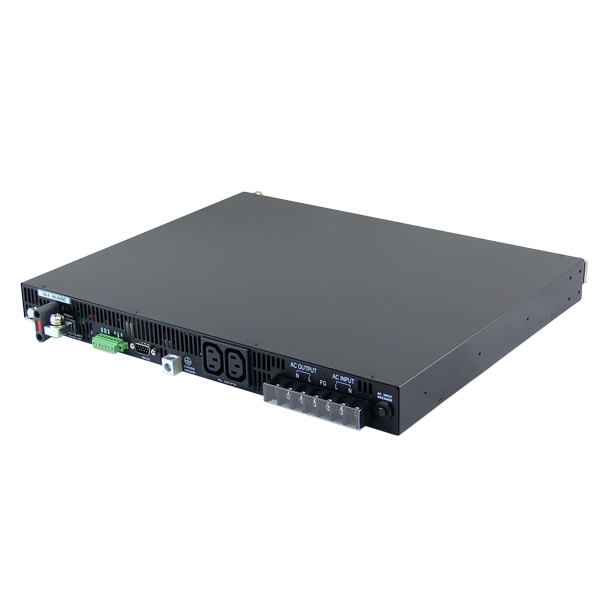

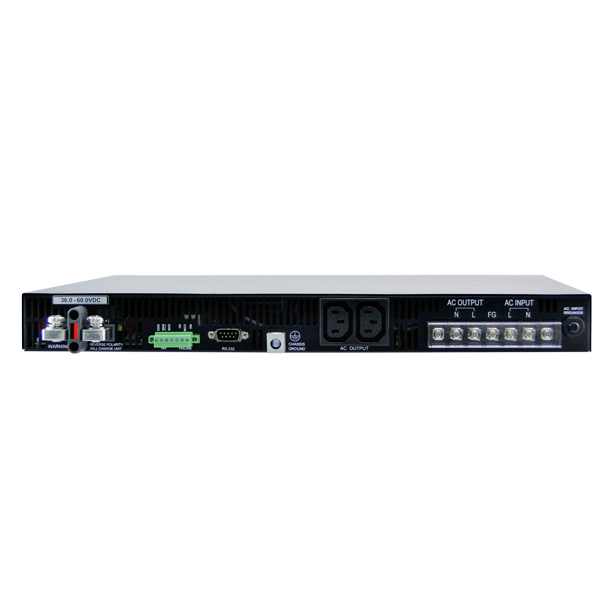

Hard-wire or dual AC outlet output connection
Fan failure alarm with buzzer
Input protection: Reverse Polarity (Fuse) / Under Voltage / Over Voltage
Output protection: Short Circuit / Over Temperature
UL / CE / FCC approved
