model AEK-3000-150, AEK-3000-200, AEK-3000-250, AEK-3000-300, AEK-3000-400
Main Features ◎ Programmable output voltage and output current (0%~105%) ◎ Parallel connection with current sharing ◎ Compact design, high power density, high efficiency ◎ Constant current limit suitable for battery charging application
Rated Power 3000W
DC Output Voltage 150V; 200V; 250V; 300V; 400V
DC Output Quantity Single
Rated Current 20A; 15A; 12A; 10A; 7.5A
Ripple & Noise (Max.) 1500mVp-p; 2000mVp-p; 2500mVp-p; 3000mVp-p; 4000mVp-p
Input Voltage Range 90~264VAC, 127~370VDC
Inrush Current (Typ.) 33A / 115VAC, 65A / 230VAC
Function Auxiliary power; Remote ON/OFF control; Power OK signal; Output voltage trim; Output current trim
Parallel Connection Yes
Protection Over Load / Over Voltage / Over Temperature / Short Circuit / Fan Failure

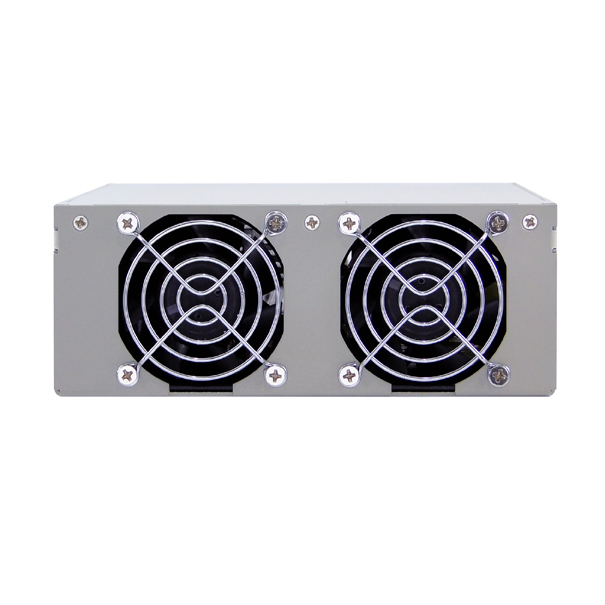

Cooling Load and temperature control fan
Efficiency 93%
Operating Temperature -20~60℃
Storage Temp. & Humidity -40~85℃, 10~95%RH
Dimension (WxHxD) 170x64x280 mm
Weight (Net) 3.8kg

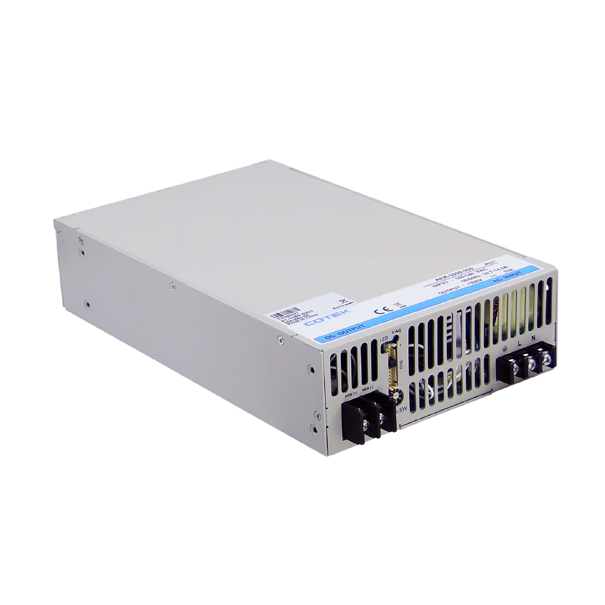

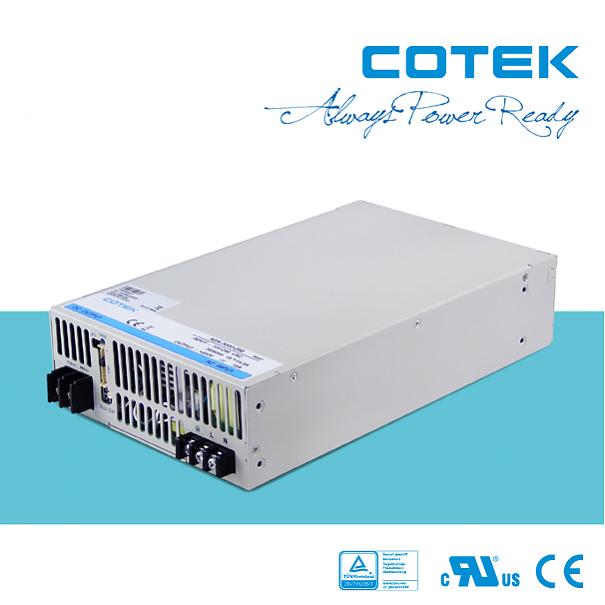

AEK-3000 HV
Universal AC input / Full range
Programmable output voltage (0%~105%)
Programmable output current (0%~105%)
High power density 16.3W / inch3
Forced current sharing at parallel operation
Constant current limit
Selectable +5V / 0.5A or +9V / 0.3A auxiliary output
Remote setting multiple PSU via RS-232, RS-485 & I2C
Power OK signal
Remote ON / OFF, remote sense function
Protection: OVP, OLP, OTP, Fan failure
Accessory:
CT Series
