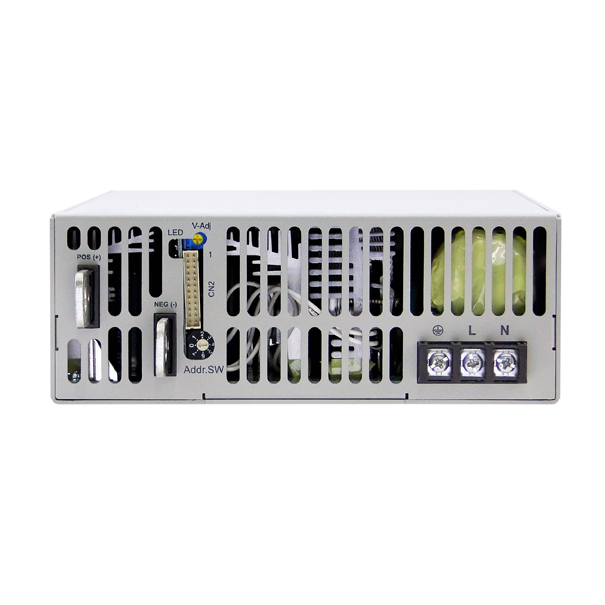

AEK-3000 LV

model AEK-3000-12, AEK-3000-15, AEK-3000-24, AEK-3000-30, AEK-3000-36, AEK-3000-48, AEK-3000-60
Main Features Programmable output voltage and output current (0%~105%) ◎ Parallel connection with current sharing ◎ Compact design, high power density, high efficiency ◎ Constant current limit suitable for battery charging application
Rated Power AEK-3000-12/15：2400W; AEK-3000-24/30/36/48/60：3000W
DC Output Voltage 12V; 15V; 24V; 30V; 36V; 48V; 60V
DC Output Quantity Single
Rated Current 200A; 160A; 125A; 100A; 83.5A; 62.5A; 50A
Ripple & Noise (Max.) 150mVp-p; 150mVp-p; 240mVp-p; 300mVp-p; 360mVp-p; 480mVp-p; 600mVp-p
Input Voltage Range 90~264VAC, 127~370VDC
Inrush Current (Typ.) 33A / 115VAC, 65A / 230VAC
Function Auxiliary power; Remote ON/OFF control; Power OK signal; Output voltage trim; Output current trim
Parallel Connection Yes
Protection Over Load / Over Voltage / Over Temperature / Short Circuit / Fan Failure

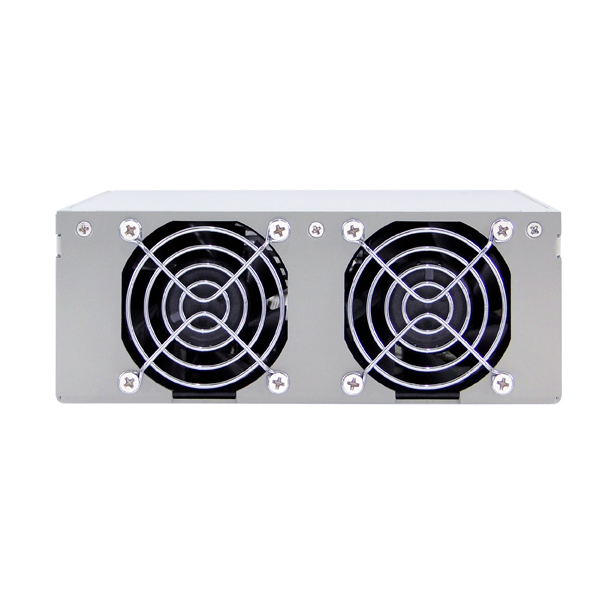

Cooling Load and temperature control fan
Efficiency 88%; 89%; 91%; 91%; 92%; 92%; 93%
Operating Temperature -20~60℃
Storage Temp. & Humidity -40~85℃, 10~95%RH
Safety TUV / UL / CE
Dimension (WxHxD) 170x64x280 mm
Weight (Net) 3.8kg
