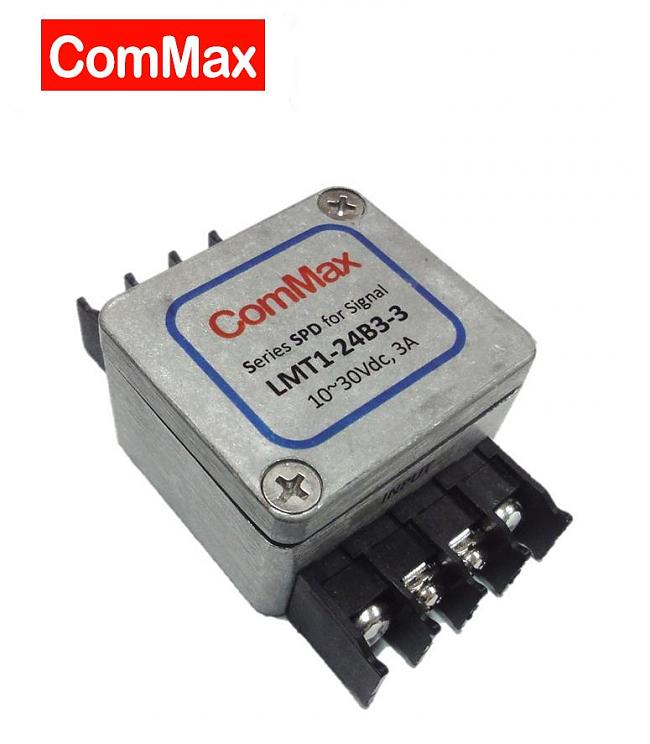

model LMT1-24B3-3
Voltage Range 3A @ DC 10 ~ 24 V
Suppressing Surges Lightning Flash Surge ; power switching surges ; Series Sparks
Switching Inrush Current ; Electric Magnetic Pulse (EMP)
Method to Handle Surge Energy Surge Energy Transfer to Voltage, then release to later consecutive waves
Protection Mode Line (L) to line (L)
Residue Voltage < 135Vp ±20% (combination surge wave, 6KV/3KA) Input Impedance without loads > 10 Mohm
Max Surge Immunity Test 1.2×50μs,6kV / 8×20μs, 3kA
Surge Energy Absorbing Rate ≥ 95 % , at 1.2×50μs,2kV / 8×20μs, 1kA (with no ground condition)
Ground Resistance Requirement No Requirement
EMP/EFT Suppressed Rate 91%2%, 4.5kV in 5x50ns EFT (with no ground condition)
Compliance standards ANSI C62.41, cat. B, IEC 61000-4-5, IEC 61000-4-4,
IEC 61643-1, ANSI/IEEE C37.90
Dimension & Weight Terminal Type:81 x 44 x 30, mm / 70 g
WP Type:109 x 44 x 30, mm / 70 g
Enclosure & Material IP65 , excluding terminal
Operation temp. / Rel. Humidity -40°C ~ 85°C / 35% ~ 95% RH (non condensing )
LMT1-24B3-3
New develop effective suppresses HV transient interference technology – EAT2V.
Able to handle instant massive charges invasion shocks from conductors when lightning
Compact size , easy install.
Meet ANSI/IEEE C62.41 cat. B, IEC 61000-4-4, IEC 61000-4-5, IEC 61643 standards.(Certificate of ETC)
