model LPoE-xB2-1
Voltage Range 1A @ DC 24~60V (PoE) , meet IEEE 802.3 at 802.3af
Suppressing Surges Lightning Flash Surge ; power switching surges ; Series Sparks
Switching Inrush Current ; Electric Magnetic Pulse (EMP)
Suitable Freqency 10/100 Base T ; 1Hz ~ 100MHz
Method to Handle Surge Energy Surge Energy Transfer to Voltage, then release to later consecutive waves
Protection Mode Rx+ to Rx- ; Tx+ to Tx- (line to line)
Residue Voltage < 135Vp ±20% (combination surge wave, 6KV/3KA) Input Impedance without loads > 10 Mohm ; < 0.5 dB
Max Surge Immunity Test 1.2×50μs,6kV / 8×20μs, 3kA
Surge Energy Absorbing Rate ≥ 93 % , at 1.2×50μs,2kV / 8×20μs, 1kA (no ground condition)
Ground Resistance Requirement No Requirement
EMP/EFT Suppressed Rate 91%, 4.5kV in 5x50ns EFT (no ground condition)
Connecting mode RJ45
Compliance standards ANSI C62.41, cat. B, IEC 61000-4-5, IEC 61000-4-4,
IEC 61643-1, ANSI/IEEE C37.90
Dimension & Weight 66/53(L) x 44/37(W) x 23(H) , mm / 52 g
Enclosure & Material Industrial Plastic
Operation temp. / Rel. Humidity -40°C ~ 85°C / 35% ~ 95% RH (non condensing )

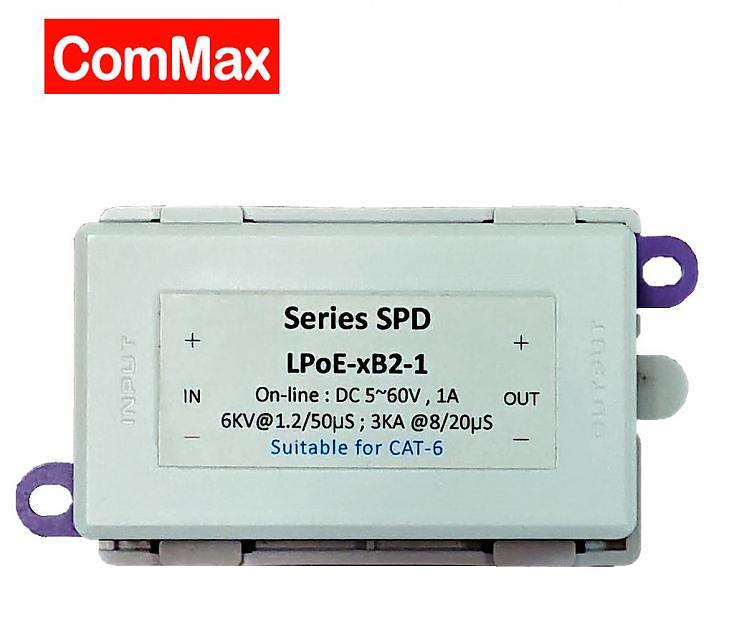

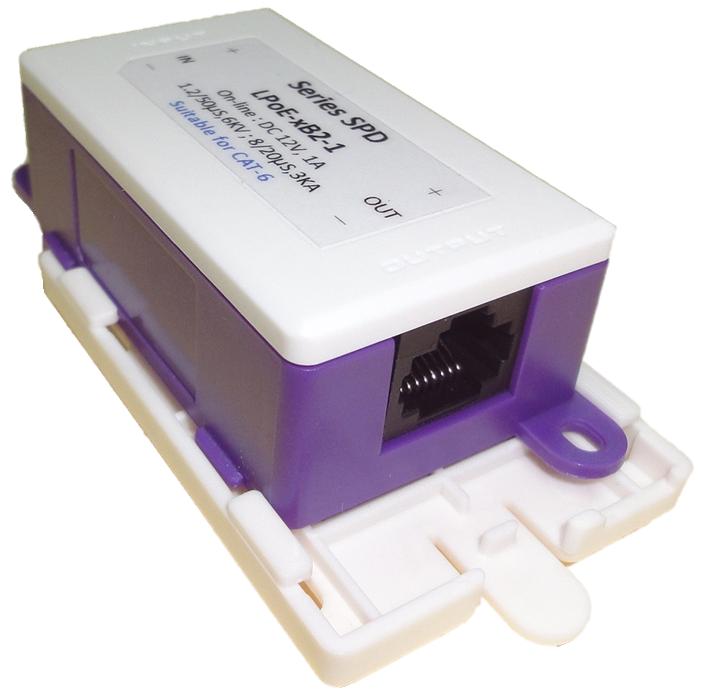

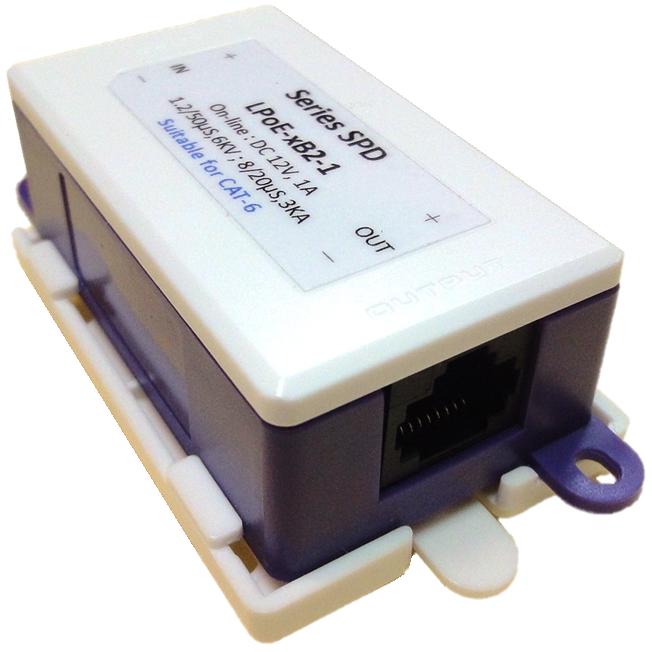

LPoE-xB2-1
Outstanding lightning & surge protection functions in no ground requirement.
New develop effective suppresses HV transient interference technology – EAT2V.
Able to handle instant massive charges invasion shocks from conductors when lightning
Compact size , easy install.
Meet ANSI/IEEE C62.41 cat. B, IEC 61000-4-4, IEC 61000-4-5, IEC 61643 standards.
