model SD1500-112 / SD1500-124 / SD1500-148 , SD1500-212 / SD1500-224 / SD1500-248
Main Features ◎ Output parallelable pure sine wave inveter up to 10.5KW ◎ Support 1Ф3W / 3Ф4W ◎ Built-in AC(Grid) by-pass switch
AC Output Voltage 100/110/115/120VAC ± 3%; 200/220/230/240VAC ± 3%
Rated Power 1500W
Surge Power 2400W (<0.2 Sec.)
Output Waveform Pure Sine Wave
Frequency 50/60 Hz ± 0.1%
DC Input Voltage 12V; 24V; 48V
DC Input Voltage Range 10~16VDC; 20~32VDC; 40~64VDC
Efficiency 88%; 89%; 90%; 88%; 88%; 90%
Operating Temperature -20~60℃, refer to de-rating curve
Storage Temperature -40~70℃
Safety CE / UL (only for 112/124 Hard wire)
Dimension (WxHxD) 283x128x351 mm
Weight (Net) 5.5kg
Socket Type GFCI / NEMA 5-15R / GE / AU / UK / Hard Wire

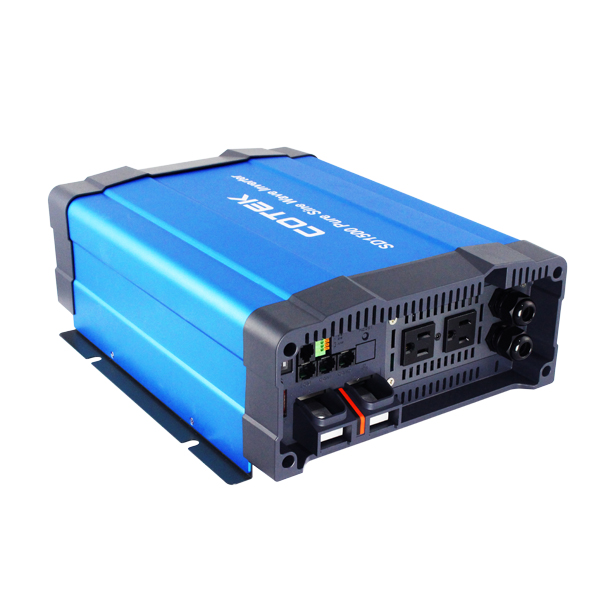

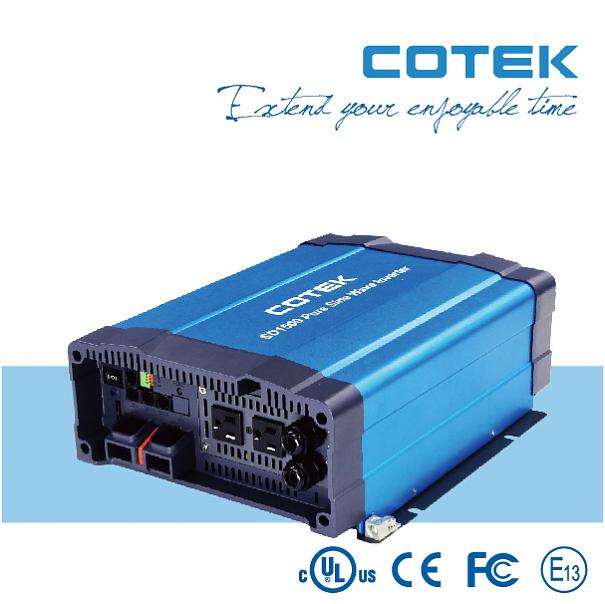

SD-1500 (1500W)
Parallel redundancy design for power expansion
1Ф3W / 3Ф4W for multiple industrial applications
Built-in ATS and AC circuit breaker
Selectable output voltage and output frequency
RS-232 communication interface
Input & output fully isolation
Output voltage / power saving mode selectable by DIP switch or remote control (via CR-10)
Input protection: Reverse Polarity (Fuse) / Under Voltage / Over Voltage
Output protection: Short Circuit / Overload / Over Temperature / Over Voltage
UL / CE approved
Accessory:
Remote controller CR-6
Remote controller CR-8
Remote controller CR-10
