model SD2500-112 / SD2500-124 / SD2500-148 / SD2500-212 / SD2500-224 / SD2500-248
Main Features ◎ Output parallelable pure sine wave inveter up to 10.5KW ◎ Support 1Ф3W / 3Ф4W ◎ Built-in AC(Grid) by-pass switch
AC Output Voltage 100/110/115/120VAC ± 3%; 200/220/230/240VAC ± 3%
Rated Power 2500W
Surge Power 4000W (<0.2 Sec.)
Output Waveform Pure Sine Wave
Frequency 50/60 Hz ± 0.1%
DC Output Voltage ─
DC Output Voltage Range ─
DC Input Voltage 12V; 24V; 48V
DC Input Voltage Range 10~16VDC; 20~32VDC; 40~64VDC
Efficiency 88%; 89%; 90%; 88%; 88%; 90%
Operating Temperature -20~60℃, refer to de-rating curve
Storage Temperature -40~70℃
Safety CE / FCC / UL (only for 112/124 Hard wire) / E13
Dimension (WxHxD) 283x128x436 mm
Weight (Net) 8kg

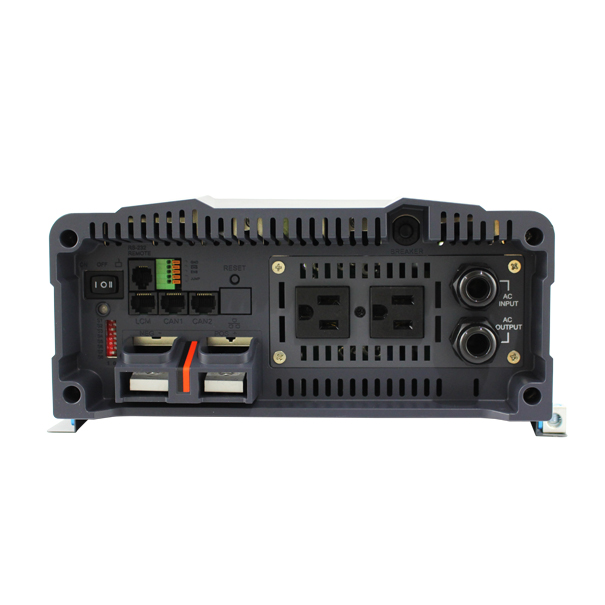

Socket Type GFCI / NEMA 5-15R / GE / AU / UK / Hard Wire

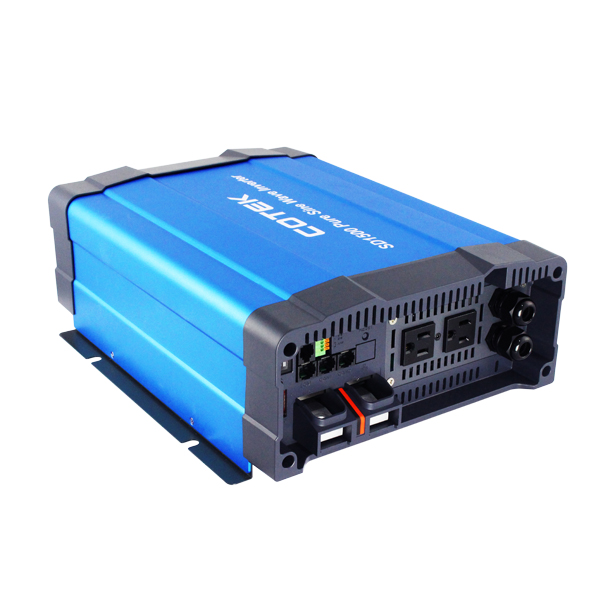

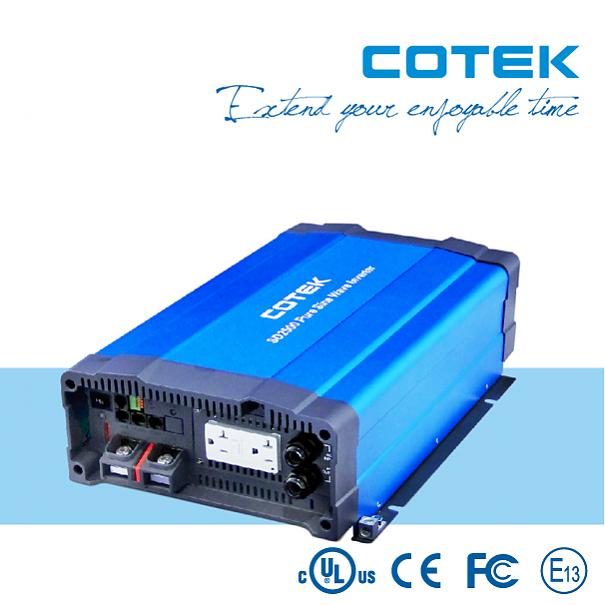

SD-2500 (2500W)
Parallel redundancy design for power expansion
1Ф3W / 3Ф4W for multiple industrial applications
Built-in ATS and AC circuit breaker
Selectable output voltage and output frequency
Optional STS module, transfer time less than 4ms.
RS-232 communication interface
Input & output fully isolation
Output voltage / power saving mode selectable by DIP switch or remote control (via CR-10)
Input protection: Reverse Polarity (Fuse) / Under Voltage / Over Voltage
Output protection: Short Circuit / Overload / Over Temperature / Over Voltage
E13 / UL / CE / FCC approved
Accessory:
Remote controller CR-6
Remote controller CR-8
Remote controller CR-10
