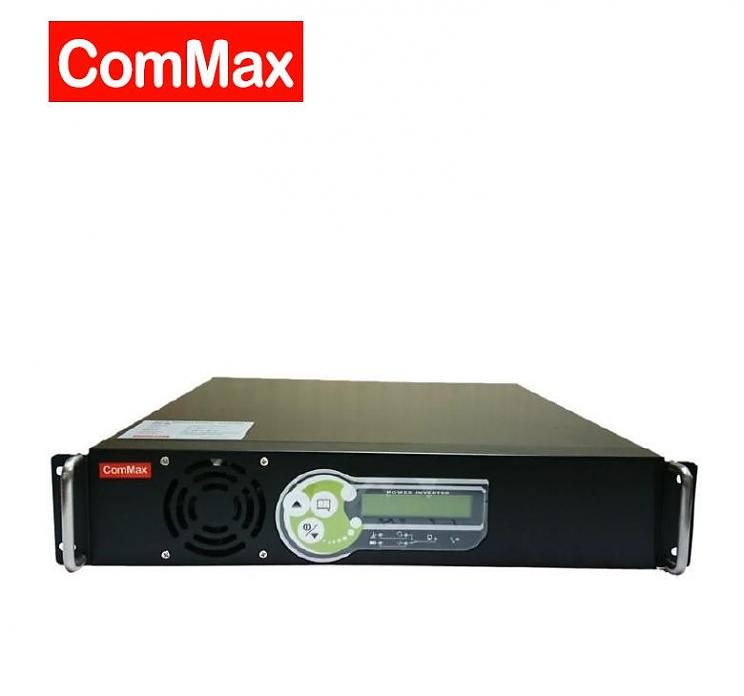

model XDA-10 (1KVA)
AC Output Voltage 115VAC or 230VAC ± 10%
Rated Power 1000W
Surge Power 1200W
Output Waveform Pure Sine Wave
Frequency 50 or 60Hz ± 0.1%
DC Input Voltage 24VDC / 48VDC / 125VDC
DC Input Voltage Range 24Vdc(20~30Vdc) ; 48Vdc(40~60Vdc) ; 125Vdc(95~150Vdc)
THD Distortion <3% at linear load Efficiency 24V:>88% ; 48V:>90% ; 125V:>91%
Operating Temperature 0~40℃
Dimension (WxHxD) 432×488/510×88(2U),mm
Weight (Net) 10kg
XDA-10 (1KVA)
Input DC Voltage Settable for Alarm and Shutdown.
Adjustable Output Voltage and Frequency
Fan’s speed controlled by temperature and load.
Handle Design
DC Polarity reverse protection
For standard 19” rack mounted , 2U height.
SNMP, RS-232 , Dry Contact (option)
