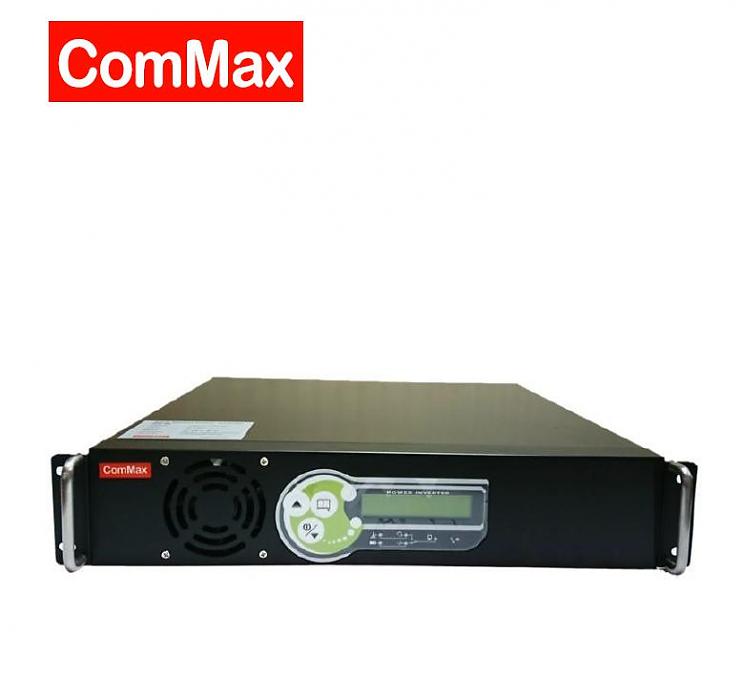

model XDA-30 (3KVA)
AC Output Voltage 115VAC or 230VAC ± 10%
Rated Power 3000W
Surge Power 3600W
Output Waveform Pure Sine Wave
Frequency 50 or 60Hz ± 0.1%
DC Input Voltage 48VDC / 125VDC
DC Input Voltage Range 48Vdc(40~60Vdc) ; 125Vdc(95~150Vdc)
THD Distortion <3% at linear load Efficiency 48V:>90% ; 125V:>91%
Operating Temperature 0~40℃
Dimension (WxHxD) 432×488/510×88(2U),mm
Weight (Net) 12kg
XDA-30 (3KVA)
Input DC Voltage Settable for Alarm and Shutdown.
Adjustable Output Voltage and Frequency
Fan’s speed controlled by temperature and load.
Handle Design
DC Polarity reverse protection
For standard 19” rack mounted , 2U height.
SNMP, RS-232 , Dry Contact (option)
