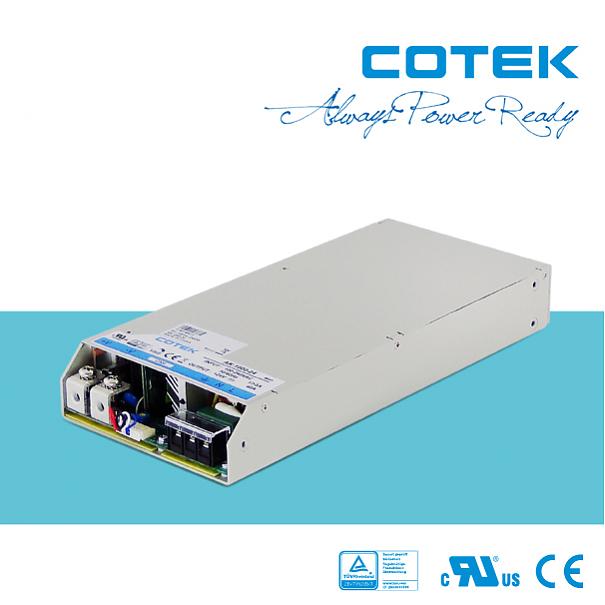

model AK-1000-12, AK-1000-15, AK-1000-24, AK-1000-27, AK-1000-48
Main Features ◎ Programmable output voltage and output current ◎ Parallel connection with current sharing ◎ Serial connection
Rated Power 744W; 750W; 960W; 999W; 1008W
DC Output Voltage 12V; 15V; 24V; 27V; 48V
DC Output Quantity Single
Rated Current 62A; 50A; 40A; 37A; 21A
Ripple & Noise (Max.) 150mVp-p
Input Voltage Range 90~264VAC, 127~370VDC
Inrush Current (Typ.) 27A / 115VAC, 54A / 230VAC
Function Auxiliary power; Remote ON/OFF control; Power OK signal; Output voltage trim; Output current trim
Parallel Connection Yes
Protection Over Load / Over Voltage / Over Temperature / Short Circuit / Fan Failure

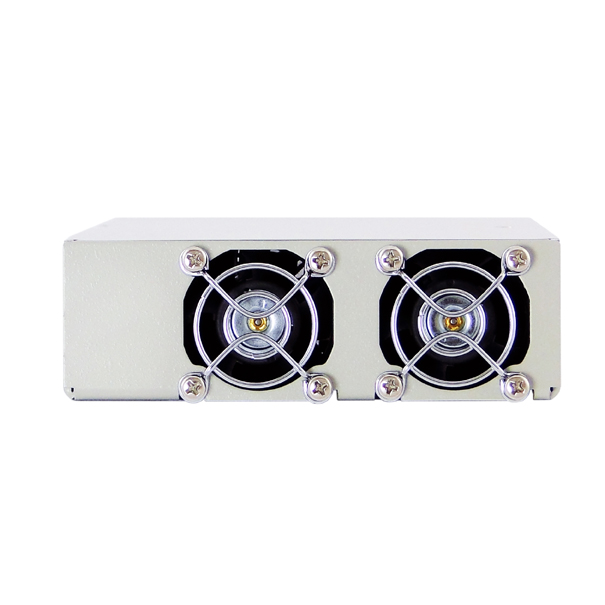

Cooling Load and temperature control fan
Efficiency 87%; 88%; 89%; 89%; 90%
Operating Temperature -25~60℃
Storage Temp. & Humidity -40~85℃, 10~95%RH
Safety TUV / UL / CE
Dimension (WxHxD) 127x41x283 mm
Weight (Net) 2.1kg

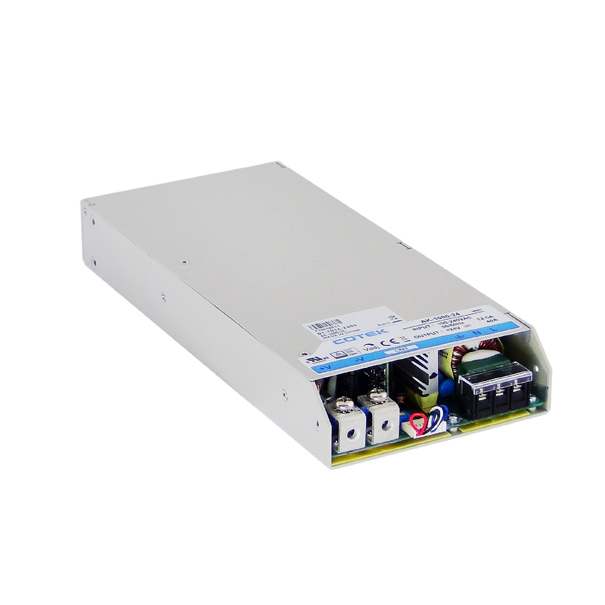

AK-1000
Universal AC input / Full range
Programmable output voltage (30%~105%)
Programmable output current (40%~105%)
+5V / 0.5A auxiliary output
Forced current sharing at parallel operation
Power OK signal
Remote ON/OFF, remote sense function
Protection: OVP, OLP, OTP, SCP, Fan failure
