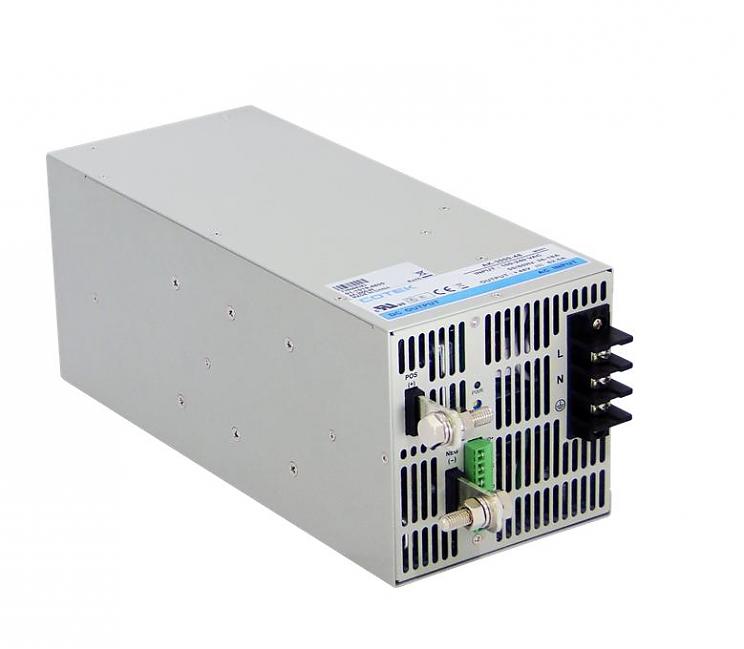

model AK-3000-12, AK-3000-15, AK-3000-24, AK-3000-27, AK-3000-48
Main Features ◎ Programmable output voltage and output current ◎ Parallel connection with current sharing ◎ Serial connection
Rated Power 3000W
DC Output Voltage 12V; 15V; 24V; 27V; 48V
DC Output Quantity Single
Rated Current 250A; 200A; 125A; 111A; 62.5A
Ripple & Noise (Max.) 150mVp-p
Input Voltage Range 90~264VAC, 127~370VDC
Inrush Current (Typ.) 60A / 115VAC, 95A / 230VAC
Function Auxiliary power; Remote ON/OFF control; Power OK signal; Output voltage trim; Output current trim
Parallel Connection YES
Protection Over Load / Over Voltage / Over Temperature / Short Circuit / Fan Failure
Cooling Load and temperature control fan
Efficiency 87%; 88%; 89%; 89%; 90%
Operating Temperature -25~60℃
Storage Temp. & Humidity -40~85℃, 10~95%RH
Safety TUV / UL / CE
Dimension (WxHxD) 127x127x305 mm
Weight (Net) 6.6kg
AK-3000
Universal AC input / Full range
Programmable output voltage (30%~105%)
Programmable output current (40%~105%)
+5V / 0.5A auxiliary output
Forced current sharing at parallel operation
Power OK signal
Remote ON / OFF, remote sense function
Protection: OVP, OLP, OTP, SCP, Fan failure
