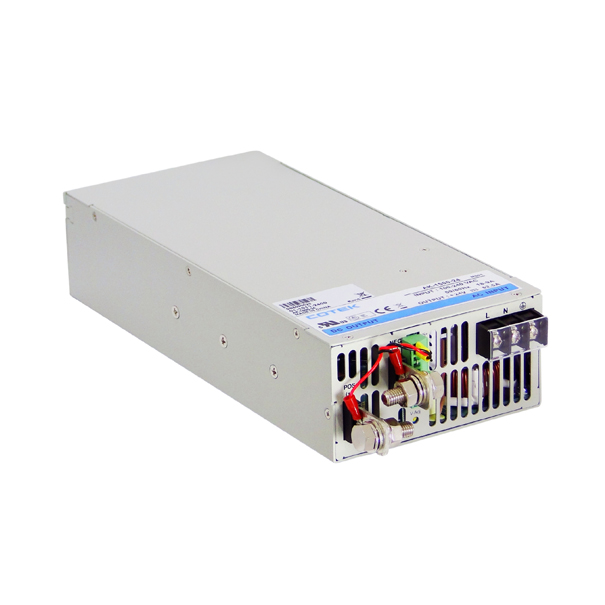

model AK-1500-12, AK-1500-15, AK-1500-24, AK-1500-27, AK-1500-48
Main Features ◎ Programmable output voltage and output current ◎ Parallel connection with current sharing ◎ Serial connection
Rated Power 1500W
DC Output Voltage 12V; 15V; 24V; 27V; 48V
DC Output Quantity Single
Rated Current 125A; 100A; 62.5A; 55.5A; 31.3A
Ripple & Noise (Max.) 150mVp-p
Input Voltage Range 90~264VAC, 127~370VDC
Inrush Current (Typ.) 30A / 115VAC, 45A / 230VAC

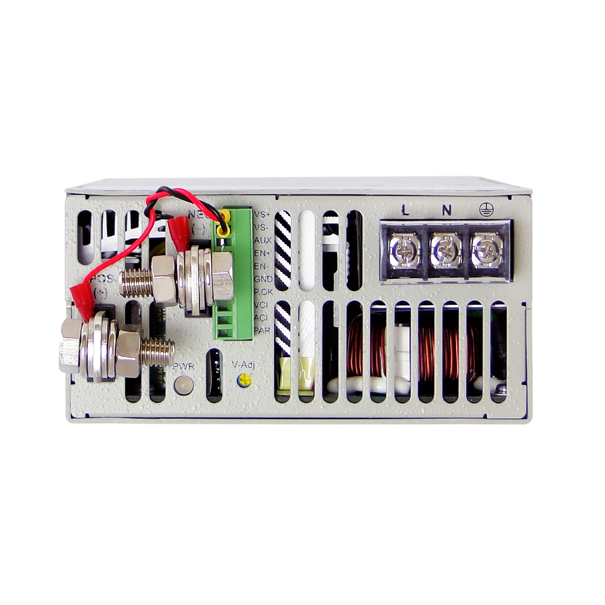

Function Auxiliary power; Remote ON/OFF control; Power OK signal; Output voltage trim; Output current trim
Parallel Connection Yes
Protection Over Load / Over Voltage / Over Temperature / Short Circuit / Fan Failure

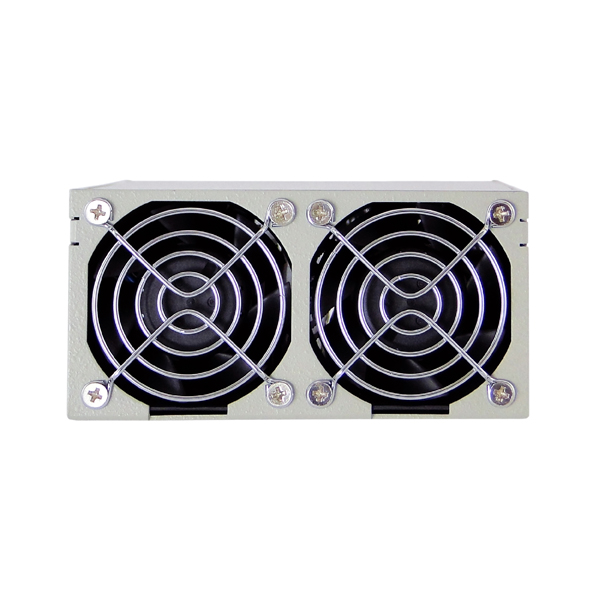

Cooling Load and temperature control fan
Efficiency 87%; 88%; 89%; 89%; 90%
Operating Temperature -25~60℃
Storage Temp. & Humidity -40~85℃, 10~95%RH
Safety TUV / UL / CE
Dimension (WxHxD) 127x64x280 mm
Weight (Net) 3.2kg

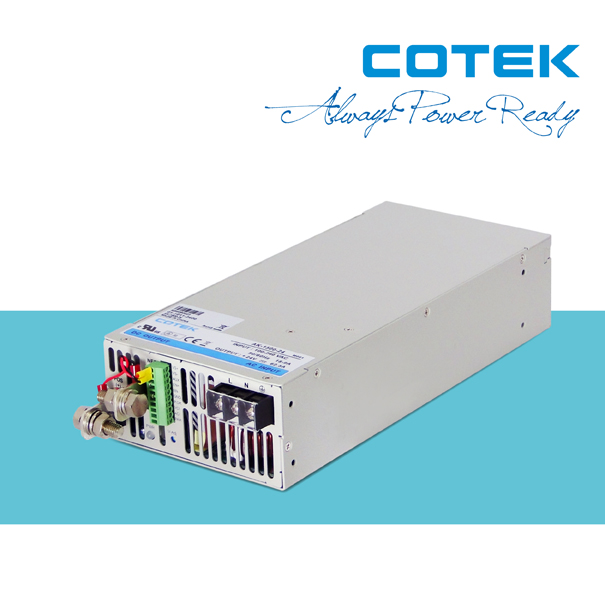

AK-1500
Universal AC input / Full range
Programmable output voltage (30%~105%)
Programmable output current (40%~105%)
+5V / 0.5A auxiliary output
Forced current sharing at parallel operation
Power OK signal
Remote ON / OFF, remote sense function
Protection: OVP, OLP, OTP, SCP, Fan failure
