model APW-280CH-15Sb
Max.Load Current 15 A
Voltage Range Single phase, 2 wires (L, N), 100V~280V AC,50/60Hz
Suppressing Surges Lightning Flash Surge (LFS) ; power switching surges (PSS) ; Switching Inrush Current (SIC) ; Electric Magnetic Pulse (EMP)
Method to Handle Surge Energy Surge Energy Transfer to Voltage, then release to voltage waves
Protection Mode Line to Neutral (or, Line to Line)
Residue Voltage <690Vp ±20%,(combination surge wave, 6KV/3KA) Input Impedance without loads > 10 M Ohm
AC wave Form Affected ≦10 mS
Max Surge Immunity Test 1.2×50μs,15kV; 8×20μs,7.5kA (no ground condition), 40 times (every 60 sec.)
Surge Energy Absorbing Rate 97 % , (no ground condition) at 1.2×50μs,10kV / 8×20μs, 5kA Combination surge wave
Ground Resistance Requirement No requirement
EMP/EFT Suppressed Rate 4.5kV, 5x50ns EFT (Elec.Fast Transient/burst)wave
Compliance standards ANSI C62.41, cat. C, high exposure, IEC 61643-1, IEC 61000-4-4(X level, 4.5KV), IEC 61000-4-5 (level X, 15KV)
Dimension & Weight 57L x 23W x 36H , mm / 70 g
Enclosure & Material Fire Proof Plastic , IP67
Operation temp. / Rel. Humidity -40°C ~ 85°C / 35% ~ 95% RH (non condensation)

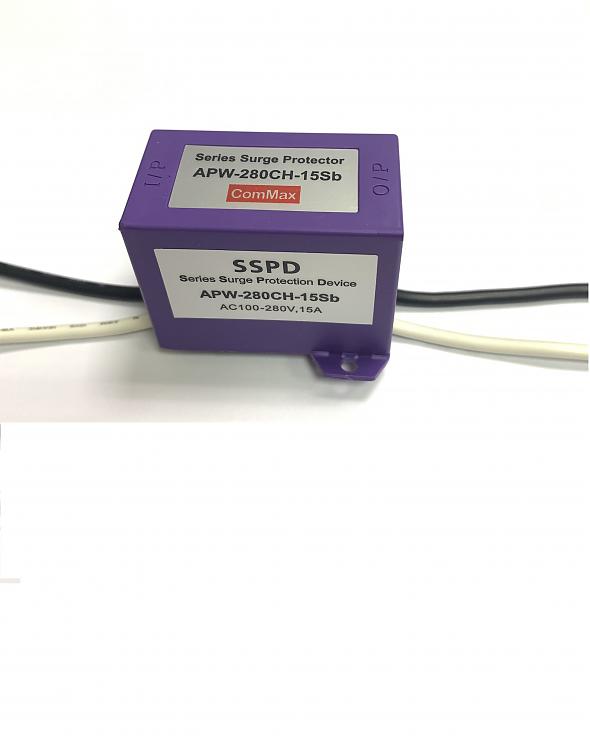

APW-280CH-15Sb
Outstanding lightning & surge protection function with no ground requirement.
New effective suppresses interference technology – EAT2V.
Able to handle instant massive charges invasion shocks from conductor when lightning.
Meet ANSI/IEEE C62.41 cat. C, high exposure; IEC 61643; IEC 61000-4-4
(X level, 4.5KV); IEC 61000-4-5 (X level, 15KV)
