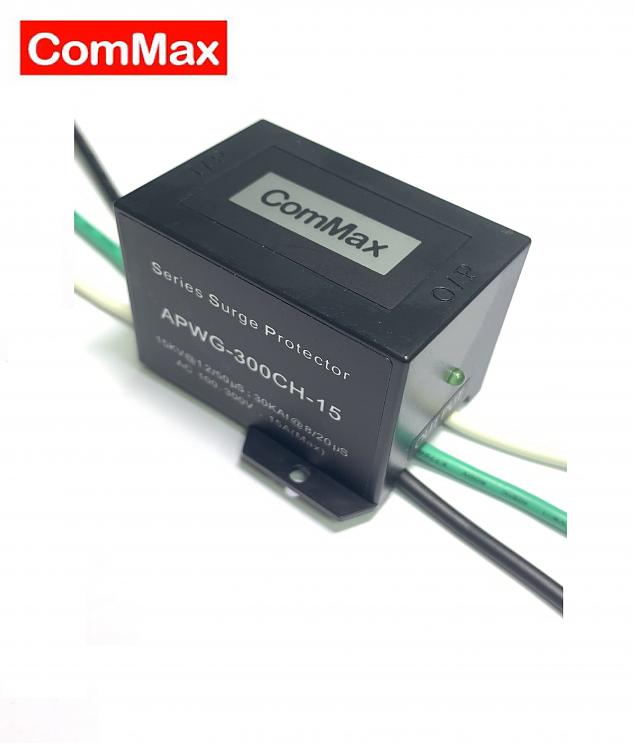

model APWG-300CH-15
Max.Load Current 15A
Voltage Range AC Single phase, 3 wires (L, N + G), 100V~300V，50/60Hz
Suppressing Surges Lightning Flash Surge (LFS) ; power switching surges (PSS) ; Switching Inrush Current (SIC) ; Electric Magnetic Pulse (EMP)
Method to Handle Surge Energy Surge Energy Transfer to Voltage, then release to later consecutive waves
Protection Mode Line(L) –Neutral(N) ; Line(L) – Ground(G) ; Neutral(N) – Ground(G)
Residue Voltage 750Vp ±15%
Input Impedance without loads >10 M Ohm
AC wave Form Affected ≦ 10 mS
Max impulse current , 8×20μs 10KA @ 8×20μs wave
Max Surge Immunity Test 1.2×50μs,15kV; 8×20μs,7.5kA (no ground condition)
Surge Energy Absorbing Rate 98 % , (no ground condition) at 1.2×50μs,10kV / 8×20μs, 5kA Combination surge wave
Ground Resistance Requirement No Requirement (Means, any resistance value is no influence to surge protection function)
EMP/EFT Suppressed Rate 4.5kV in 5x50ns EFT(Elec. Fast Transient/ Burst) waveform
Compliance standards ANSI C62.41, cat. C, high exposure, IEC 61643-1, IEC 61000-4-4(X-level,4.5KV), IEC 61000-4-5 (X-level,15KV)
Dimension & Weight 74 L x 37 W x 36 H , mm / 112 g
Enclosure & Material Fire Proof Plastic , IP67
Operation temp. / Rel. Humidity -40°C ~ 85°C / 35% ~ 95% RH (no condensation)
APWG-300CH-15
Outstanding lightning & surge protection functions in poor ground conditions.
New develop effective suppresses HV transient interference technology – EAT2V.
Able to handle instant massive charges invasion shocks from conductor when lightning.
To neutralize transient high potential interference invading from ground when lightning.
Meet ANSI/IEEE C62.41 cat. C, high exposure, IEC 61643, IEC 61000-4-4, IEC 61000-4-5(X level), 1.2×50μs,15KV (Attestation by ETC).
