model APWG-320CH-10Sd
Max.Load Current 10 A
Voltage Range AC Single phase, 3 wires (L, N + G), 90V~320V，50/60Hz
Suppressing Surges Lightning Flash Surge ; power switching surges ; Switching Inrush Current ; Electric Magnetic Pulse
Method to Handle Surge Energy Surge Energy Transfer to Voltage, then release to later consecutive waves
Protection Mode Line(L) –Neutral(N) ; Line(L) – Ground(G) ; Neutral(N) – Ground(G)
Residue Voltage 850Vp ±20% (combination surge wave, 6KV/3KA)
Input Impedance without loads >10 M Ohm
AC wave Form Affected ≦ 10 mS
Max impulse current , 8×20μs 15KV @ 1.2×50μs , 2 times in 90 sec interval
Max Surge Immunity Test 10KA @ 8×20μs wave , one time in pos & neg. wave
Surge Energy Absorbing Rate 97 % , at 1.2×50μs,10kV / 8×20μs, 5kA Combination wave
Ground Resistance Requirement No Requirement (Means, any resistance value is no influence to surge protection function)
EMP/EFT Suppressed Rate 4.5kV in 5x50ns EFT(Elec. Fast Transient/ Burst) waveform
Compliance standards ANSI C62.41, cat. C, high exposure, IEC 61643-1, IEC 61000-4-4(X-level,4.5KV), IEC 61000-4-5 (X-level,20KV)
Dimension & Weight 59 L x 29/41 W x 39 H , mm / 120 g
Enclosure & Material Industrial Fire Proof Plastic , IP68 / Fixed by screws
Operation temp. / Rel. Humidity -20°C ~ 85°C / 35% ~ 95% RH (no condensation)

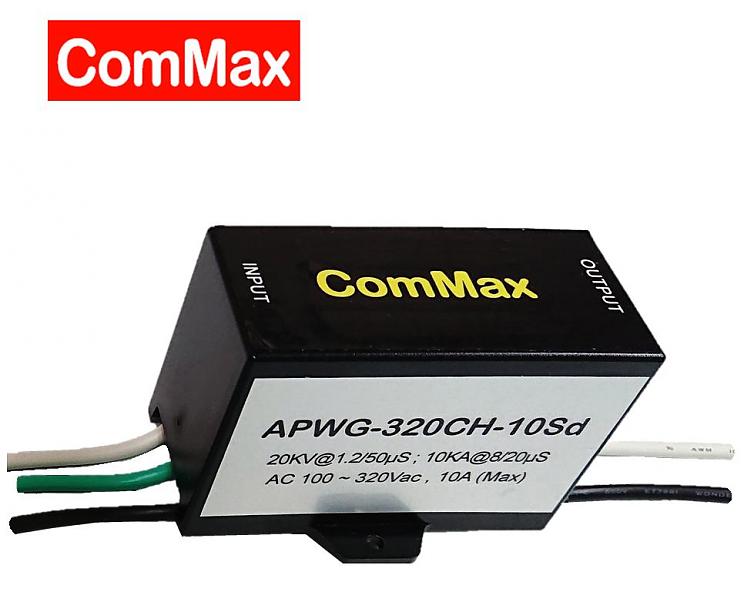

APWG-320CH-10Sd
Outstanding lightning & surge protection functions in no ground requirement.
New develop effective suppresses HV transient interference technology – EAT2V.
Able to handle instant massive charges invasion shocks from conductor when lightning.
To neutralize transient high potential interference invading from ground when lightning.
Meet ANSI/IEEE C62.41 cat. C, high exposure, IEC 61643, IEC 61000-4-4, IEC 61000-4-5(X level, 1.2×50μs,20KV)
