model SE-200-112 / SE-200-124 , SE-200-212 / SE-200-224
Main Features ◎ Wide input range ◎ Output frequency and output voltage selectable
AC Output Voltage 100/110/115/120 VAC; 200/220/230/240 VAC
Rated Power 200W (VA)
Surge Power 250W (VA) (3 Sec.)
Output Waveform Pure Sine Wave (THD<3%)
Frequency 50/60 Hz ± 0.5%
DC Output Voltage ─
DC Output Voltage Range ─
DC Input Voltage 12V; 24V
DC Input Voltage Range 10~16VDC; 20~32VDC
Efficiency 89%; 91%; 91%; 93%
Operating Temperature -20~60℃
Storage Temperature -30~70℃
Safety CE / FCC / E13
Dimension (WxHxD) 150x68x187 mm
Weight (Net) 1.6 KG
Socket Type GFCI / NEMA 5-15R / GE / AU / UK / Universal

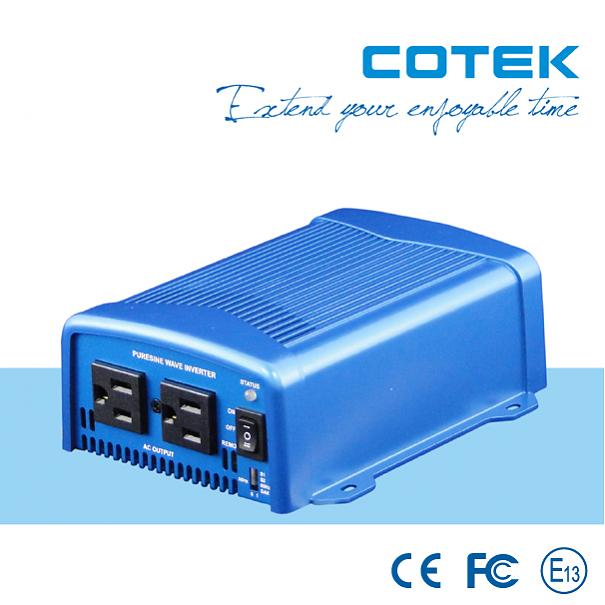

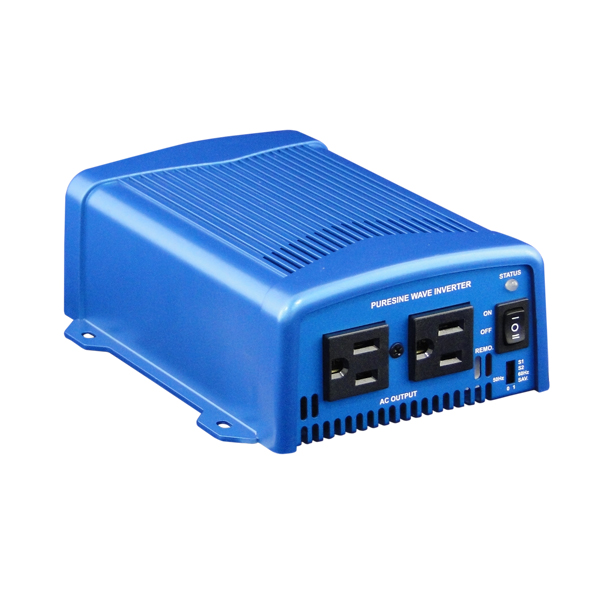

SE-200 (200W)
Pure sine wave output

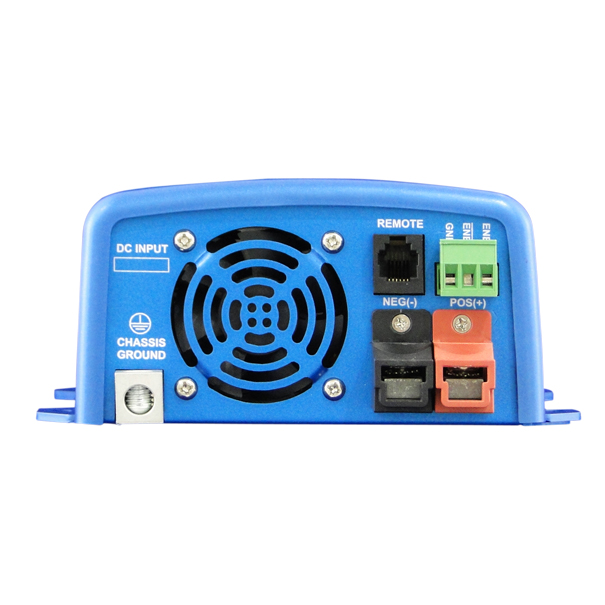

Power ON / OFF remote control (Green Terminal)
Wide input range：10~16VDC (112 / 212), 20~32VDC (124 / 224)
Wide operating temperature：-20℃~60℃
Input & output fully isolation

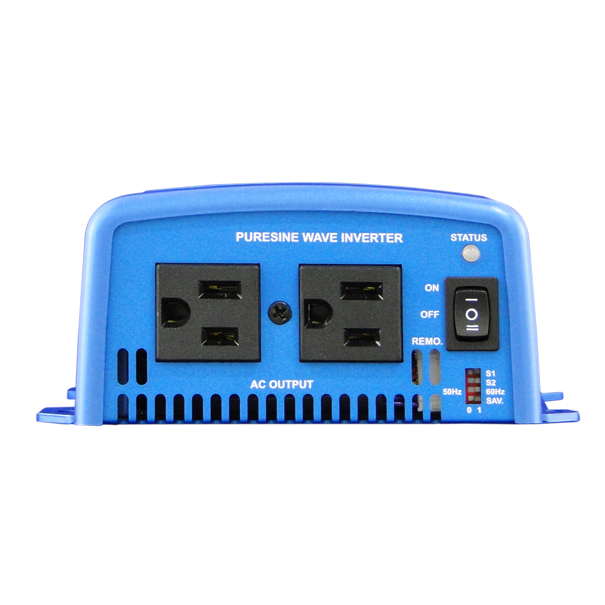

Output frequency 50/60Hz selectable by DIP switch
Output voltage / power saving mode selectable
Input protection: Reverse Polarity (Fuse) / Under Voltage / Over Voltage
Output protection: Short Circuit / Overload / Over Temperature
CE / FCC / E13 approved
