model SE400-112 / SE400-124 / SE400-148 , SE400-212 / SE400-224 / SE400-248
Main Features ◎ Output frequency and output voltage selectable
AC Output Voltage 100/110/115/120 VAC; 200/220/230/240 VAC
Rated Power 400W
Output Waveform Pure Sine Wave (THD<3% @ rated VDC, linear load)
Frequency 50/60 Hz ± 0.5%
DC Input Voltage 12V; 24V; 48V
DC Input Voltage Range 10.5~16VDC; 21~32VDC; 42~64VDC
Efficiency 88%; 89%; 90%; 88%; 89%; 90%
Operating Temperature -20~40℃, Power De-rating from 40°C~60°C
Storage Temperature -30~70℃
Safety CE / FCC/UL
Dimension (WxHxD) 150x68x187 mm
Weight (Net) 1.22KG
Socket Type GFCI / NEMA 5-15R / GE / AU / UK / France Connector / Universal

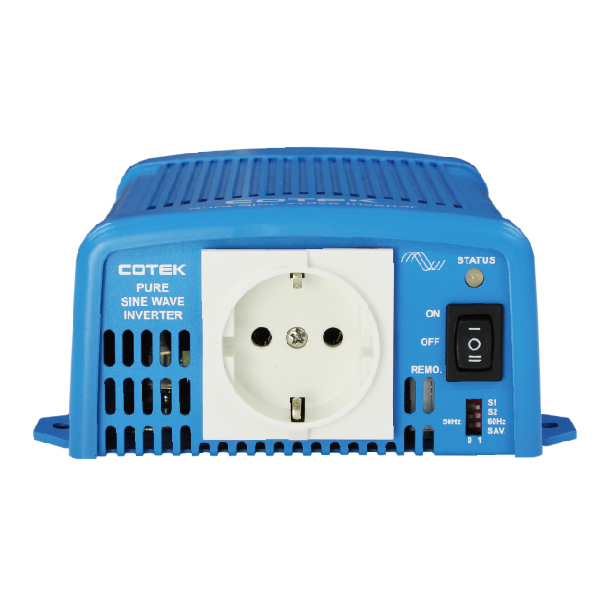

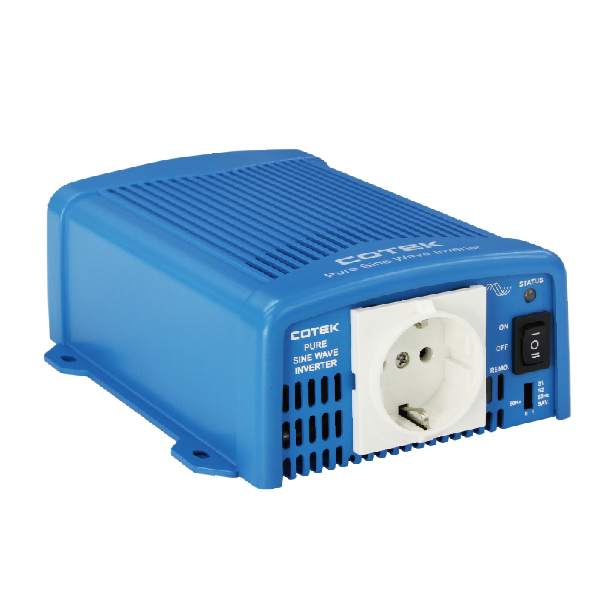

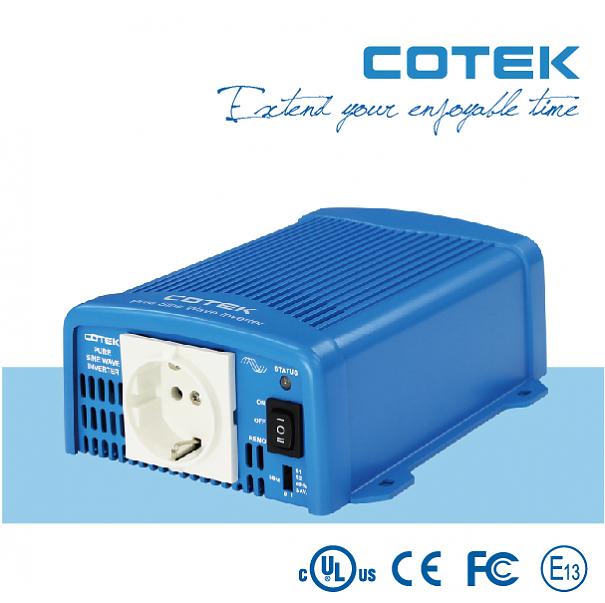

SE-400 (400W)
Pure sine wave output (THD < 5% @ , linear load @ 12.5V / 25V / 50V)

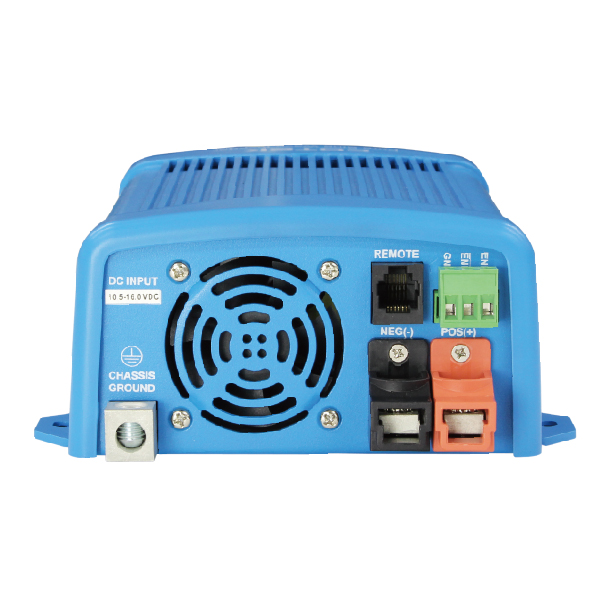

Power ON / OFF remote control (Green Terminal)
Input & output fully isolation
Output frequency 50/60Hz selectable by DIP switch
Output voltage / power saving mode selectable
Input protection: Reverse Polarity (Fuse) / Under Voltage / Over Voltage
Output protection: Short Circuit / Overload / Over Temperature
Power saving mode < 2W
FCC / CE approved
