model SE350-112 / SE350-124 / SE350-148 , SE350-212 / SE350-224 / SE350-248
Main Features ◎ Output frequency and output voltage selectable
AC Output Voltage 100/110/115/120 VAC; 200/220/230/240 VAC
Rated Power 350W
Surge Power 700W
Output Waveform Pure Sine Wave (THD<3% @ rated VDC, linear load)
Frequency 50/60 Hz ± 0.1%
DC Output Voltage ─
DC Output Voltage Range ─
DC Input Voltage 12V; 24V; 48V
DC Input Voltage Range 10~15.5VDC; 20~31VDC; 40~62VDC
Efficiency 87%; 88%; 89%; 89%; 90%; 91%
Operating Temperature -20~60℃, refer to de-rating curve
Storage Temperature -30 ~ +70 ℃ , 10~95% RH (non condensation)
Safety CE / E13
Dimension (WxHxD) 150x68x187 mm
Weight (Net) 1.6 KG
Socket Type GFCI / NEMA 5-15R / GE / AU / UK / France Connector / Universal

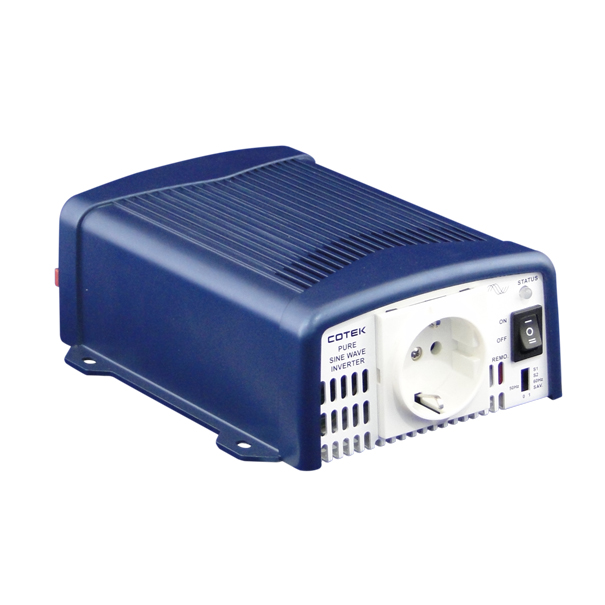

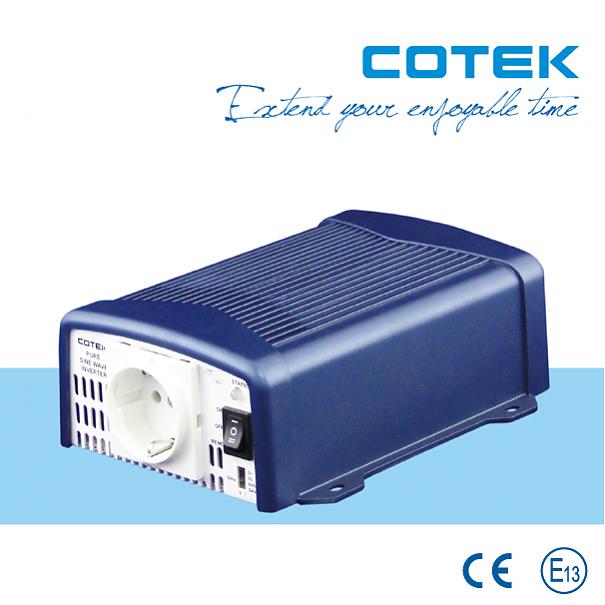

SE-350 (350W)
Pure sine wave output (THD < 3% @ rated VDC, linear load)

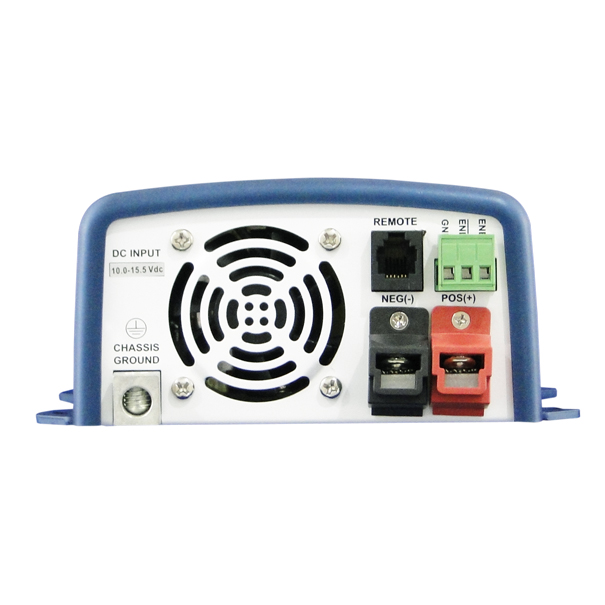

Power ON / OFF remote control (Green Terminal)
Input & output fully isolation

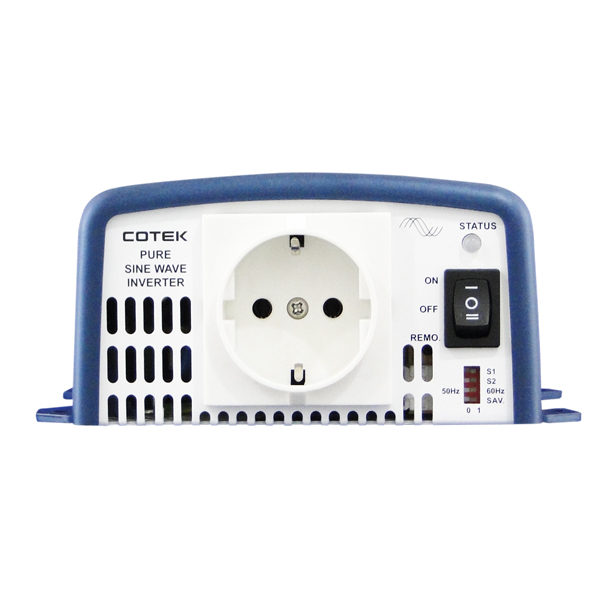

Output frequency 50/60Hz selectable by DIP switch
Output voltage / power saving mode selectable
Input protection: Reverse Polarity (Fuse) / Under Voltage / Over Voltage
Output protection: Short Circuit / Overload / Over Temperature
Power saving mode < 2W
CE / E13 approved
