model SP-2000-112 / SP-2000-124 / SP-2000-148 , SP-2000-212 / SP-2000-224 / SP-2000-248
Main Features ◎ New generation pure sine wave inverter ◎ Higher efficiency, high power density ◎ Selectable output voltage and frequency ◎ Robust aluminum case
AC Output Voltage 100/110/115/120 VAC; 200/220/230/240 VAC
Rated Power 2000W (VA)
Surge Power < 3500W (VA)
Output Waveform 100V series：Pure Sine Wave (THD<5%); 200V series：Pure Sine Wave (THD<3%)
Frequency 50/60 Hz ± 0.5% (Dip switch selectable)
DC Output Voltage ─
DC Output Voltage Range ─
DC Input Voltage 12V; 24V; 48V
DC Input Voltage Range 10.5~16.5VDC; 21~33VDC; 42~66VDC
Efficiency 92%; 93%; 94%; 94%; 94%; 95%
Operating Temperature -20~40℃
Storage Temperature -30~70℃
Safety CE / FCC / UL (only for 112/124 GFCI receptacles) / E13
Dimension (WxHxD) 248x83x443 mm
Weight (Net) 5.24kg
Socket Type GFCI / NEMA 5-15R / GE / AU / UK / France Connector / Universal
Inventory Seandand: 220Vac / Universal Socket , 110Vac/ NEMA Socket

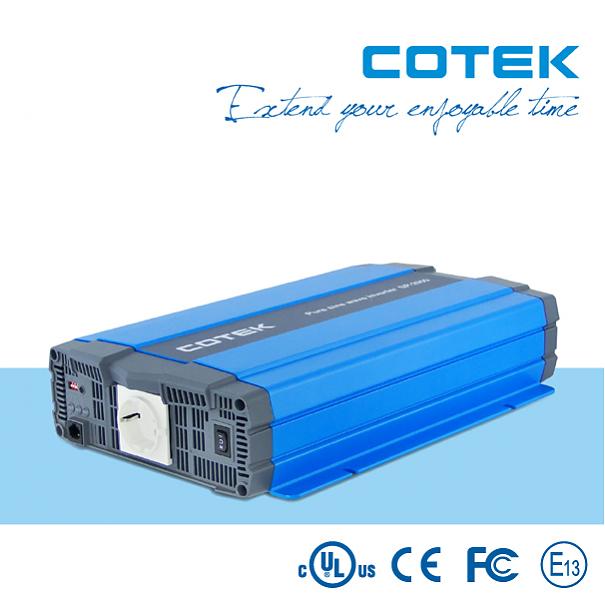

SP-2000 (2000W)
Pure sine wave output
Power ON / OFF remote control (Green Terminal)
Input & output fully isolation
Temperature & load controlled cooling fan
User friendly interface
Output frequency 50/60 Hz selectable by DIP switch
Output voltage DIP switch selectable
Power saving mode by variable resister
3-color LED status indicators
Input protection：Reverse Polarity (Fuse) / Under Voltage / Over Voltage
Output protection：Short Circuit / Overload / Over Temperature
E13 / UL / CE / FCC approved
Accessory:
Remote controller CR-8
Remote controller CR-16A
By-pass switch TR-40
