model SP-700-112 / SP-700-124 / SP-700-148 , SP-700-212 / SP-700-224 / SP-700-248
Main Features ◎New generation pure sine wave inverter ◎ Higher efficiency, high power density ◎ Selectable output voltage and frequency ◎ Robust aluminum case
AC Output Voltage 100/110/115/120 VAC ; 200/220/230/240 VAC
Rated Power 700W (VA)
Surge Power < 1230W (VA)
Output Waveform 100V series：Pure Sine Wave (THD<5%); 200V series：Pure Sine Wave (THD<3%)
Frequency 50/60 Hz ± 0.5% (Dip switch selectable)
DC Output Voltage ─
DC Output Voltage Range ─
DC Input Voltage 12V; 24V; 48V
DC Input Voltage Range 10.5~16.5VDC; 21~33VDC; 42~66VDC
Efficiency 91%; 93%; 93%; 91%; 93%; 94%
Operating Temperature -20~40℃
Storage Temperature -30~70℃
Safety CE / FCC / UL (only for 112/124 GFCI receptacles) / E13
Dimension (WxHxD) 200x83x330 mm
Weight (Net) 2.6kg
Socket Type GFCI / NEMA 5-15R / GE / AU / UK / France Connector / Universal
Inventory Seandand: 220Vac / Universal Socket , 110Vac/ NEMA Socket

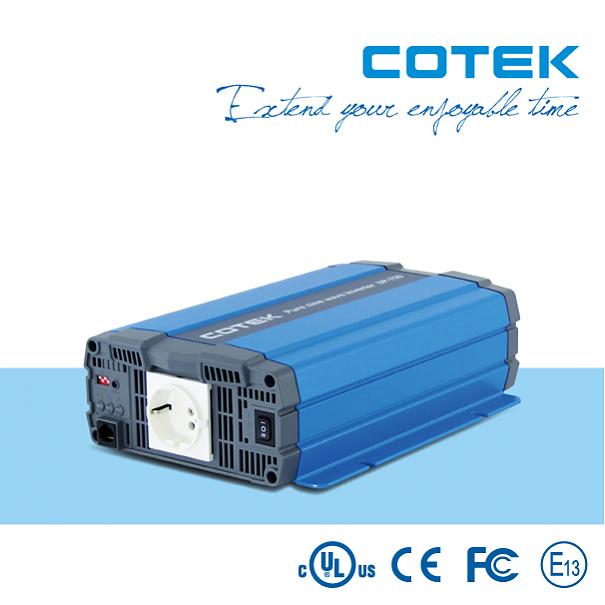

SP-700 (700W)
Pure sine wave output
Power ON / OFF remote control (Green Terminal)
Input & output fully isolation
Temperature & load controlled cooling fan
User friendly interface
Output frequency 50/60 Hz selectable by DIP switch
Output voltage DIP switch selectable
Power saving mode by variable resister
3-color LED status indicators
Input protection：Reverse Polarity (Fuse) / Under Voltage / Over Voltage
Output protection：Short Circuit / Overload / Over Temperature
E13 / UL / CE / FCC approved
Accessory:
Remote controller CR-8
Remote controller CR-16A
By-pass switch TR-40
