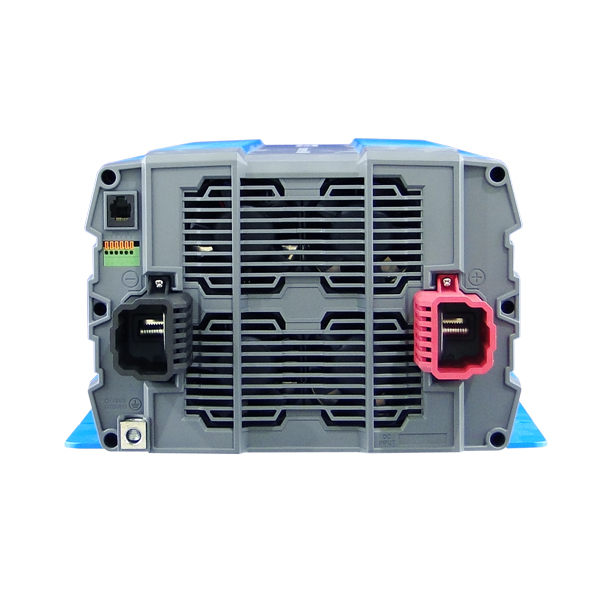

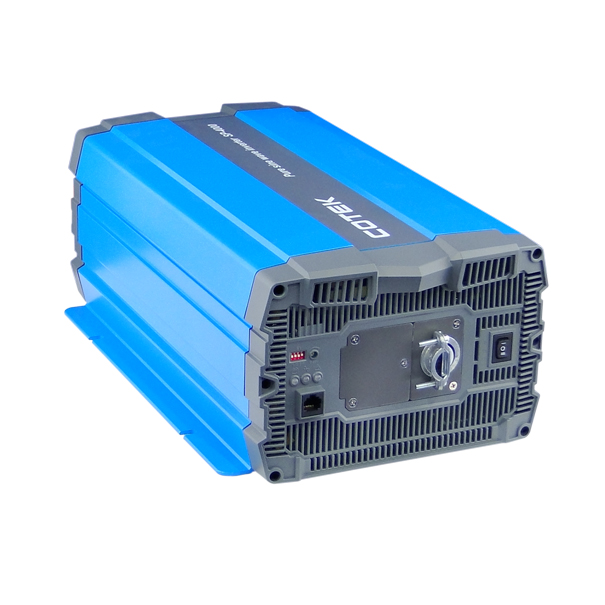

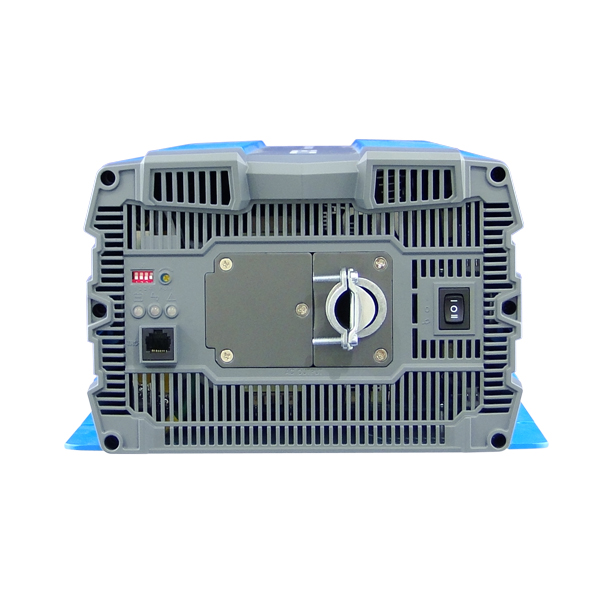

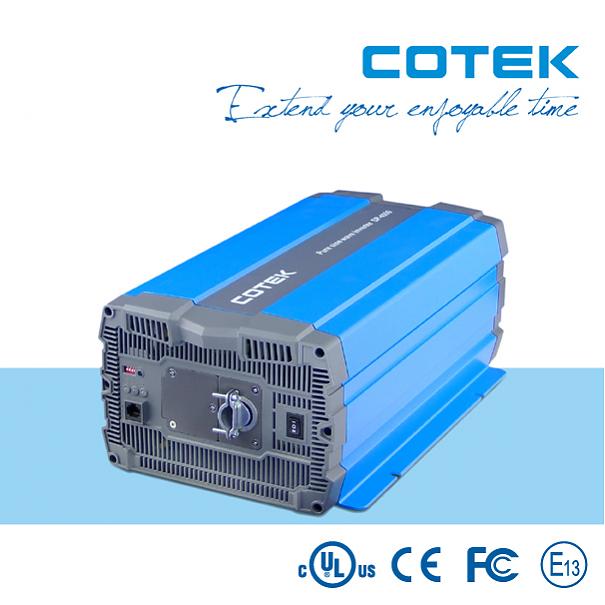

model SP-4000-124 / SP-4000-148 , SP-4000-224 / SP-4000-248
Main Features ◎ New generation pure sine wave inverter ◎ Higher efficiency, high power density ◎ Selectable output voltage and frequency ◎ Robust aluminum case
AC Output Voltage 100/110/115/120 VAC; 200/220/230/240 VAC
Rated Power 4000W (VA)
Surge Power < 8000W (VA)
Output Waveform 100V series：Pure Sine Wave (THD<5%); 200V series：Pure Sine Wave (THD<3%)
Frequency 50/60 Hz ± 0.5% (Dip switch selectable)
DC Output Voltage ─
DC Output Voltage Range ─
DC Input Voltage 24V; 48V
DC Input Voltage Range 21~33VDC; 42~66VDC
Efficiency 91%; 91%; 90%; 91%
Operating Temperature -20~40℃
Storage Temperature -30~70℃
Safety CE / FCC / UL (only for 112/124) / E13
Dimension (WxHxD) 255x158x462 mm
Weight (Net) 10kg
Socket Type Hard Wire
SP-4000 (4000W)
Pure sine wave output
Power ON / OFF remote control (Green Terminal)
Input & output fully isolation
Temperature & load controlled cooling fan
User friendly interface
Output frequency 50/60 Hz selectable by DIP switch
Output voltage DIP switch selectable
Power saving mode by variable resister
3-color LED status indicators
Input protection：Reverse Polarity (Fuse) / Under Voltage / Over Voltage
Output protection：Short Circuit / Overload / Over Temperature
E13 / UL / CE / FCC approved
Accessory:
Remote controller CR-8
Remote controller CR-16A
By-pass switch TR-40
