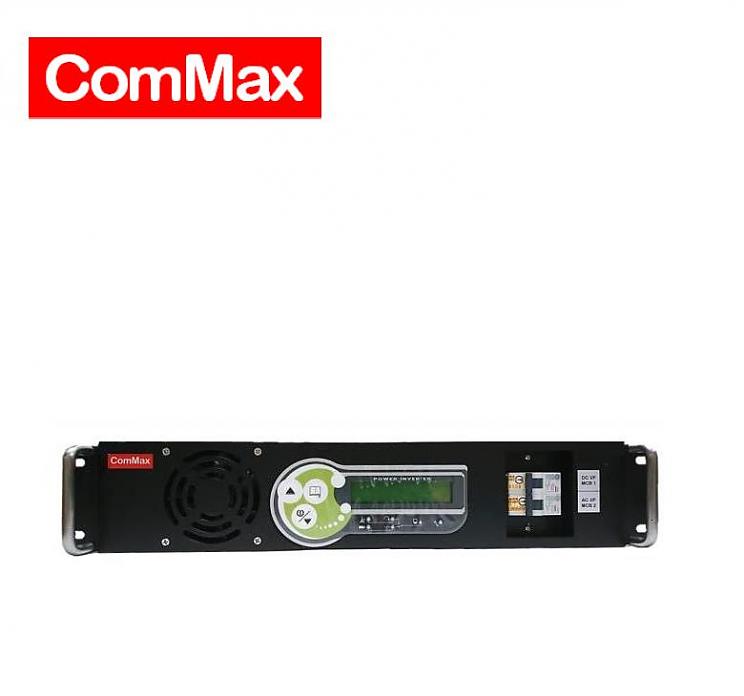

model XIV-20 (2KVA, 含AC旁路) )
Main Features ◎ 19” 2U rack mount ◎ User-friendly LCM module
AC Output Voltage 110VAC or 230VAC ± 1%
Rated Power 1600W
Surge Power 2400W
Output Waveform Pure Sine Wave
Frequency 50 or 60Hz ± 0.1%
DC Input Voltage 24VDC / 48VDC / 125VDC
DC Input Voltage Range 24Vdc(21~31Vdc) ; 48Vdc(42~64Vdc) ; 125Vdc(105~150Vdc)
THD Distortion <3% at linear load Efficiency 24V:>88% ; 48V:>90% ; 125V:>91%
Operating Temperature 0~40℃
Dimension (WxHxD) 432×488/510×88(2U),mm
Weight (Net) 11Kg
XIV-20 (2KVA,Includ AC Bypass) )
Input DC Voltage Settable for Alarm and Shutdown.
Adjustable Output Voltage; depends on your needs.
Ground Fault Alarm. Records Event Log of Inverter.
Built-in Transfer Switch.
Monitoring & Control with LCD display.
Fan’s speed controlled by temperature.
50 / 60 Hz Output Frequency Auto Sensing.
Dry Contact Alarm and RS-232 (Optional)
