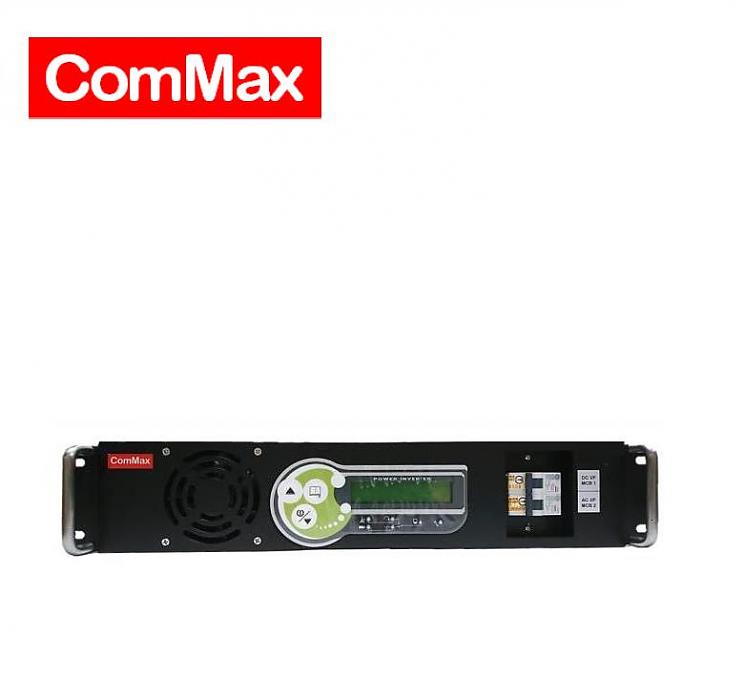

model XIV-30 (3KVA, 含AC旁路)
Main Features ◎ 19” 2U rack mount ◎ User-friendly LCM module
AC Output Voltage 110VAC or 230VAC ± 1%
Rated Power 2400W
Surge Power 3600W
Output Waveform Pure Sine Wave
Frequency 50 or 60Hz ± 0.1%
DC Input Voltage 48VDC / 125VDC
DC Input Voltage Range 48Vdc(42~64Vdc) ; 125Vdc(105~150Vdc)
THD Distortion <3% at linear load Efficiency 48V:>90% ; 125V:>91%
Operating Temperature 0~40℃
Dimension (WxHxD) 432×488/510×88(2U),mm
Weight (Net) 12Kg
XIV-30 (3KVA,Includ AC Bypass)
Input DC Voltage Settable for Alarm and Shutdown.
Adjustable Output Voltage; depends on your needs.
Ground Fault Alarm. Records Event Log of Inverter.
Built-in Transfer Switch.
Monitoring & Control with LCD display.
Fan’s speed controlled by temperature.
50 / 60 Hz Output Frequency Auto Sensing.
Dry Contact Alarm and RS-232 (Optional)
