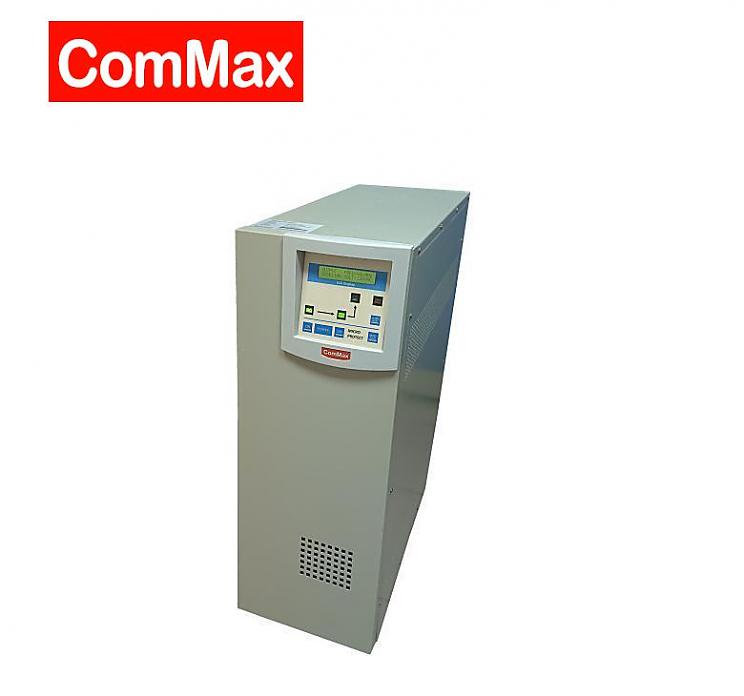

model XIV100-120-120
10KVA(8KW)
AC Output Voltage 1ph 2w , 120Vac ±15%
Output Waveform Pure Sine Wave
DC Input Voltage 120VDC
DC Input Voltage Range (95~145 VDC) / (105~160VDC)
THD Distortion ≦3% in full load
Efficiency >85%
Operating Temperature 0~40℃
Dimension (WxHxD) 310Wx910Hx660D,mm
Weight (Net) 138KG
XIV100-120-120 10KVA(8KW)
Pure sine wave output
Low Frequency design
DC operation mode (DC priority)
Overload protection
Short circuit protection
LCD display system information
Built-in Bypass Static Transfer Switch
