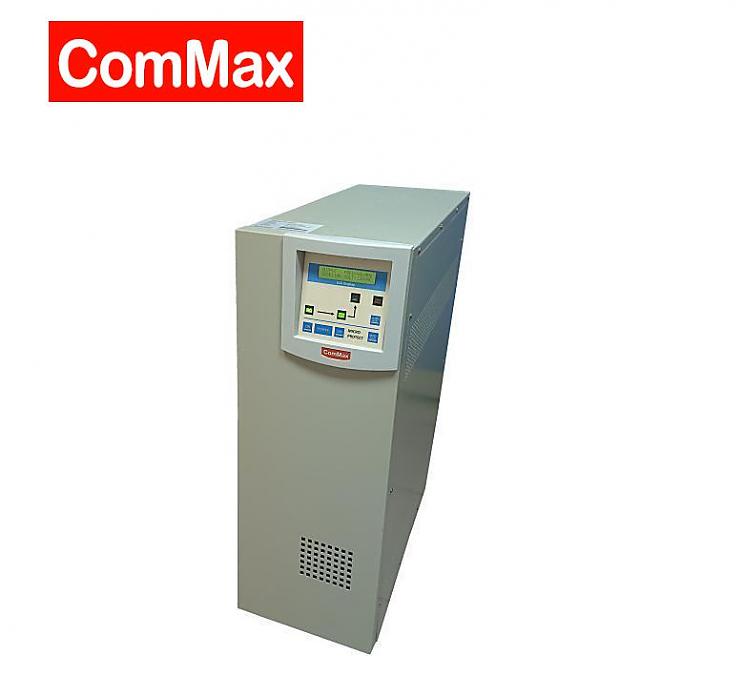

model XIV-50-120-120
5KVA(4KW) / 5KVA(5KW)
AC Output Voltage 1ph 2w + G, 120Vac ±2%
Output Waveform Pure Sine Wave
Frequency 50 or 60Hz ± 5%
DC Input Voltage 120VDC
DC Input Voltage Range (95~145 VDC) / (105~160VDC)
THD Distortion ≦3% in full load
Efficiency >85%
Operating Temperature 0~40℃
Dimension (WxHxD) 310Wx910Hx660D,mm
Weight (Net) 97KG/98KG
XIV-50-120-120 5KVA(4KW) / 5KVA(5KW)
Pure sine wave output
Low Frequency design
DC operation mode (DC priority)
Overload protection
Short circuit protection
LCD display system information
Built-in Bypass Static Transfer Switch
